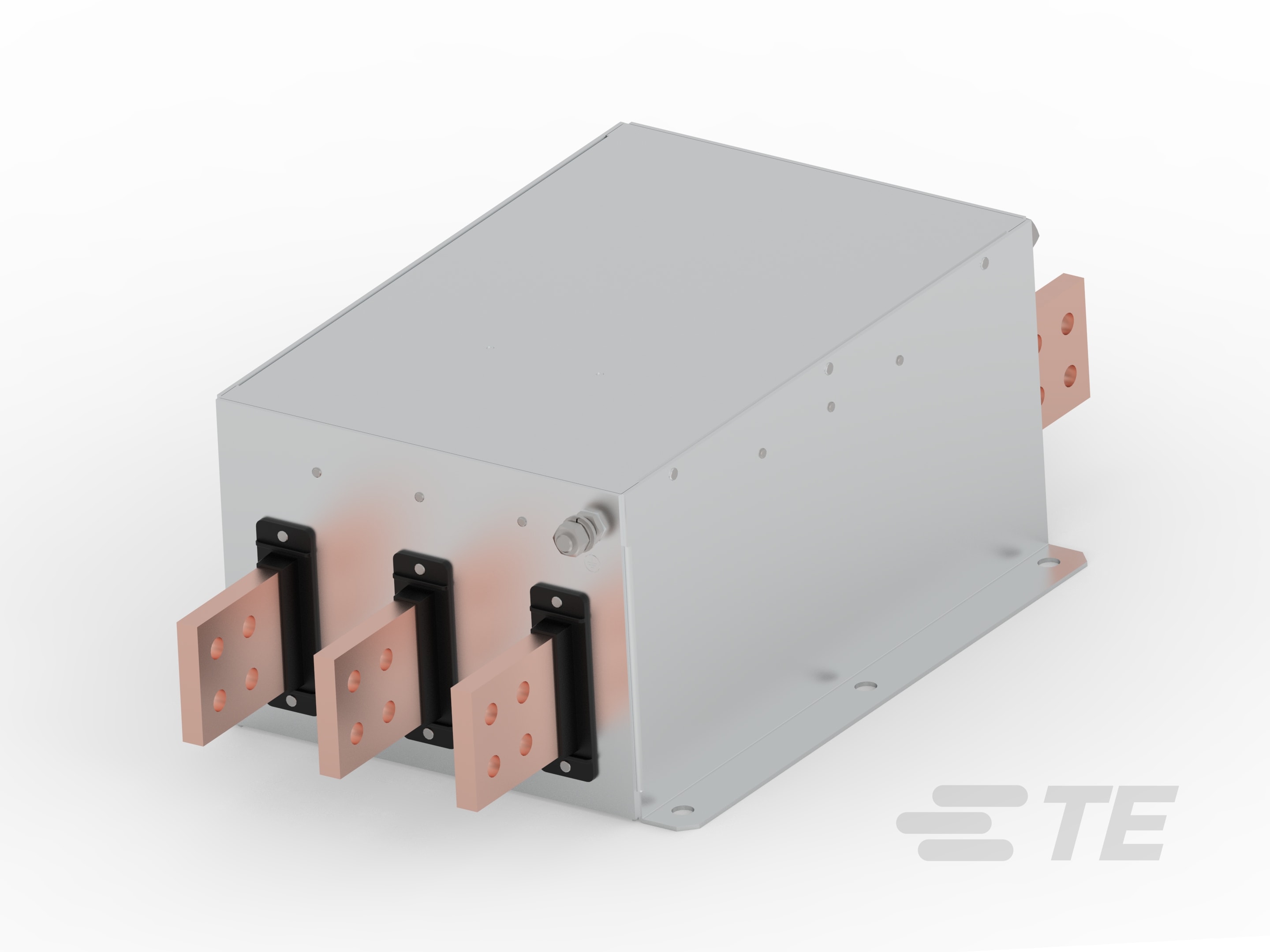

Specification	FN3359HV-2500-99

Applications	General Purpose
Approval Agency	ENEC, cURus
Configuration	Three Stage
Current	2500 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	0 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Post
Voltage - Rated AC (Phase to Ground/Neutral)	400 V
Voltage - Rated AC (Phase to Phase)	690 V

Schaffner FN3359 Series

Part	Applications	Termination Style	Configuration	Mounting Type	Filter Subtype	Filter Type	Frequency - Operating (Max)	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Approval Agency	Voltage - Rated AC (Phase to Phase)	Operating Temperature (Min)	Operating Temperature (Max)
TE Connectivity AMP Connectors FN3359HV-320-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	320 A	400 V	cURus ENEC	690 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359HV-1600-99-UL	General Purpose	Terminal Post	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	1.6 kA	440 V	CE cURus ENEC UKCA	760 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359-800-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	800 A	300 V	cURus ENEC	520 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359-1600-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	1.6 kA	300 V	cURus ENEC	520 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359-320-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	320 A	300 V	cURus ENEC	520 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359-250-28	General Purpose	Threaded Post (M10)	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	250 A	300 V	cURus ENEC	520 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359-600-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	600 A	300 V	cURus ENEC	520 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359HV-150-28	General Purpose	Threaded Post (M10)	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	150 A	400 V	cURus ENEC	690 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359-180-28	General Purpose	Threaded Post (M10)	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	180 A	300 V	cURus ENEC	520 V	-25 °C	100 °C
TE Connectivity AMP Connectors FN3359HV-180-28	General Purpose	Threaded Post (M10)	Three Stage	Chassis Mount	Delta	Three Phase	60 Hz	180 A	400 V	cURus ENEC	690 V	-25 °C	100 °C
