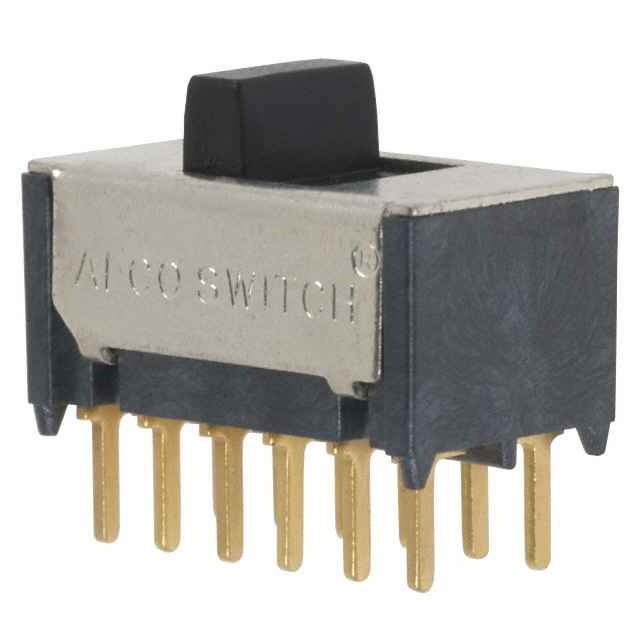

TSS41NGPC

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Material	Contact Finish	Mechanical Life	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Circuit	Contact Material	Electrical Life	Termination Style	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Travel	Operating Force	Actuator Type	Contact Timing	Voltage Rating - AC	Operating Force [Max]	Operating Force [Min]
TE Connectivity Raychem Cable Protection TSS41NGRA	Polybutylene Terephthalate (PBT)	Gold	60000 Cycles	20 V	On-On	0.4 VA	4PDT	Copper	60000 Cycles	PC Pin	2.79 mm	-20 C	80 C	Through Hole Right Angle	3.05 mm	200 gf	Standard	Non-Shorting	20 V
TE Connectivity Raychem Cable Protection TSS41NGPC	Polyester	Gold	60000 Cycles	20 V	On-On	0.4 VA	4PDT	Copper Alloy	60000 Cycles	PC Pin	2.79 mm	-20 C	80 C	Through Hole	3.05 mm		Standard	Non-Shorting	20 V	600 gf	150 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch 4PDT Through Hole
