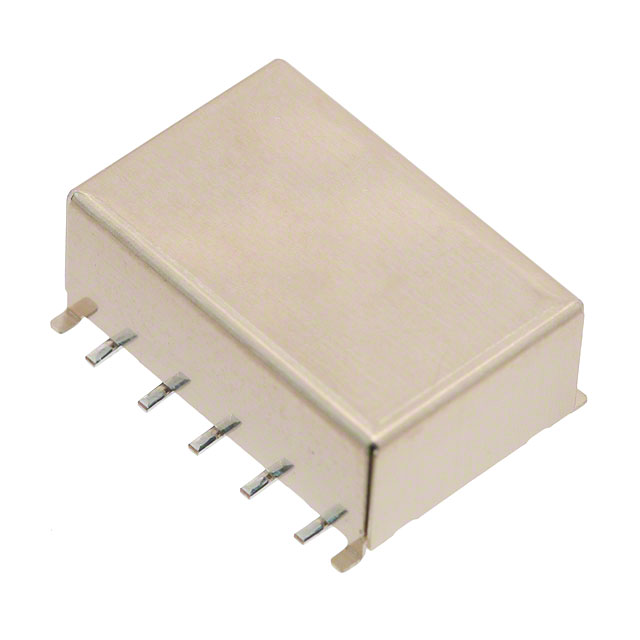

ARA210A09X

Active

Panasonic Electric Works

RELAY RF DPDT 1A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ARA210A09X

Active

Panasonic Electric Works

RELAY RF DPDT 1A 9V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ARA210A09X

Coil Current	7.8 mA
Coil Power	70 mW
Coil Resistance	1.157 kOhms
Coil Type	Latching, Single Coil
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	1 A
Mounting Type	Surface Mount
Must Operate Voltage	6.75 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	4 ms
Switching Voltage	30 VDC
Termination Style	Gull Wing

ARA210 Series

Part	Mounting Type	Coil Type	Contact Material	Coil Power	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Form	Operate Time	Coil Resistance	Coil Voltage	Coil Current	Release Time	Must Operate Voltage	Switching Voltage	Termination Style	Load - Max Switching [Max]	Relay Type
Panasonic Electric Works ARA210A4HX	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	289.3 Ohms	4.5 VDC	15.6 mA	4 ms	3.38 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A12	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	2.06 kOhms	12 VDC	5.8 mA	4 ms	9 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A03Z	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	128.6 Ohms		23.3 mA	4 ms	2.25 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A24Z	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	100 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	5.76 kOhms	24 VDC	4.2 mA	4 ms	18 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A09Z	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	1.157 kOhms	9 VDC	7.8 mA	4 ms	6.75 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A24	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	100 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	5.76 kOhms	24 VDC	4.2 mA	4 ms	18 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A09X	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	1.157 kOhms	9 VDC	7.8 mA	4 ms	6.75 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A1H	Surface Mount	Latching Single Coil	Silver (Ag)				1 A	DPDT (2 Form C)		40 Ohms	1.5 VDC	46.9 mA		1.13 VDC	30 VDC	Gull Wing	30 W	RF
Panasonic Electric Works ARA210A4HZ	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	289.3 Ohms	4.5 VDC	15.6 mA	4 ms	3.38 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A03	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	129 Ohms		23.3 mA	4 ms	2.25 VDC	30 VDC	Gull Wing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 17.48

Description

General part information

ARA210 Series

RELAY RF DPDT 1A 9V
