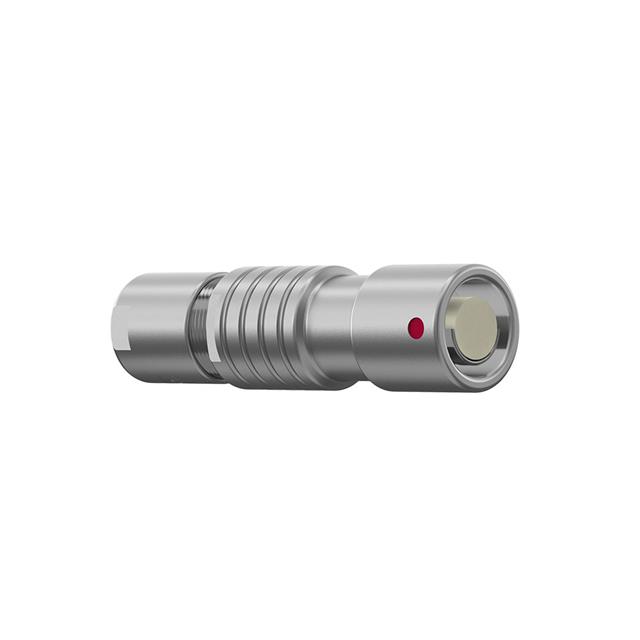

K13F1C-P12LPH0-0200

Active

ODU

ODU MINI-SNAP RECEPT.,INLINE.SZ.

Search across all available documentation for this part.

Active

ODU

ODU MINI-SNAP RECEPT.,INLINE.SZ.

Technical Specifications

Parameters and characteristics for this part

Specification	K13F1C-P12LPH0-0200

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Unshielded
Voltage Rating	450 V

Part	Primary Material	Ingress Protection	Backshell Material, Plating	Color	Insert Material	Contact Finish - Mating	Material Flammability Rating	Shell Size - Insert	Contact Material	Applications	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Shell Finish	Features	Mounting Type	Shielding	Number of Positions	Orientation	Current Rating (Amps)	Voltage Rating	Fastening Type
ODU K13F1C-P12LPH0-0200	Metal	IP50	Brass Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Gold	UL94 V-0	3	Brass	Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	-40 °C	120 °C	Brass	Chrome over Nickel	Backshell	Free Hanging (In-Line)	Unshielded	12	1	12 A	450 V	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 121.43

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
