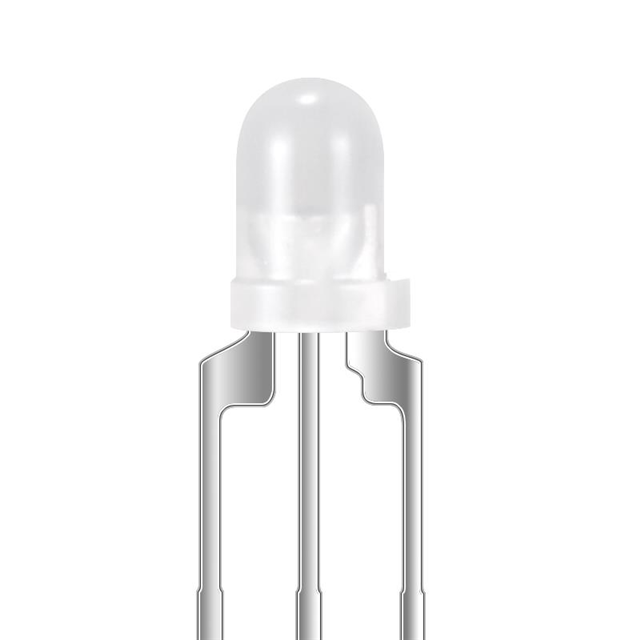

XLVGMYK29M
ActiveSunLED
LED GRN/YLW DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLVGMYK29M
ActiveSunLED
LED GRN/YLW DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLVGMYK29M |
|---|---|
| Color | Green, Yellow |
| Configuration | Common Cathode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 6.93 mm |
| Lens Color | White |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 248 mcd |
| Millicandela Rating [custom] | 98 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | T-1 (3mm) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2 V |
| Wavelength - Dominant | 570 nm, 590 nm |
| Wavelength - Peak | 590 nm, 574 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.50 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.14 | |||
| 25000 | $ 0.13 | |||
Description
General part information
XLVGMYK29 Series
Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow Radial - 3 Leads
