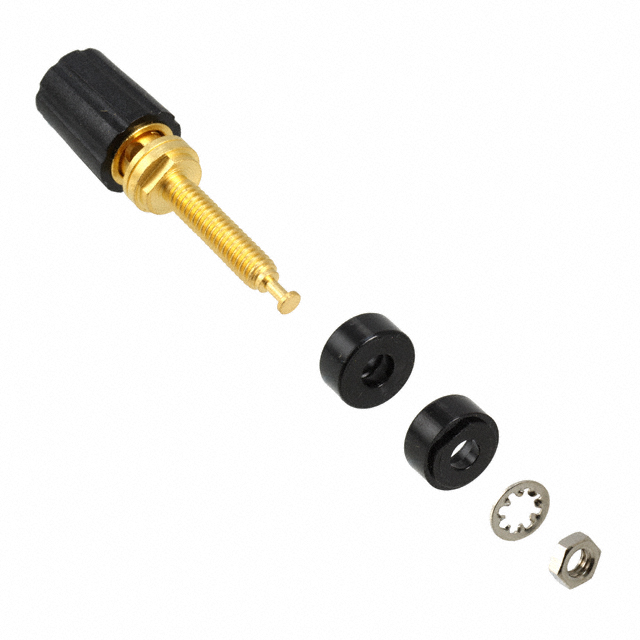

3770-0

Active

Pomona Electronics

CONN BIND POST KNURLED BLACK

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BIND POST KNURLED BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	3770-0

Color	Black
Cross Hole Diameter [diameter]	0.096 in
Cross Hole Diameter [diameter]	2.43 mm
Current Rating (Amps)	15 A
Head Size	11.18 mm
Head Size [diameter]	0.44 "
Material - Body	Tellurium Copper
Material - Insulation	Polycarbonate
Material - Insulation	PC
Nut Material	Brass
Nut Plating	Nickel
Plating - Body [custom]	Gold
Termination	Turret, Threaded
Termination Thread	8-32
Type	Standard
Voltage Rating	33 VAC, 70 VDC

Part	Material - Body	Material - Insulation	Material - Insulation	Nut Plating	Head Size [diameter]	Head Size	Current Rating (Amps)	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Nut Material	Plating - Body [custom]	Termination Thread	Voltage Rating	Type	Termination	Color
Pomona Electronics 3770-2	Copper	Polycarbonate	PC	Nickel	0.44 "	11.18 mm	15 A	0.096 in	2.43 mm	Brass	Gold	8-32	33 VAC 70 VDC	Standard	Threaded Turret	Red
Pomona Electronics 3770-0	Tellurium Copper	Polycarbonate	PC	Nickel	0.44 "	11.18 mm	15 A	0.096 in	2.43 mm	Brass	Gold	8-32	33 VAC 70 VDC	Standard	Threaded Turret	Black
Pomona Electronics 3770-2#	Copper	Polycarbonate	PC	Nickel	0.44 "	11.18 mm	15 A	0.096 in	2.43 mm	Brass	Gold	8-32	33 VAC 70 VDC	Standard	Threaded Turret	Red
Pomona Electronics 3770-0#	Copper	Polycarbonate	PC	Nickel	0.44 "	11.18 mm	15 A	0.096 in	2.43 mm	Brass	Gold	8-32	33 VAC 70 VDC	Standard	Threaded Turret	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Binding Post Connector Standard Knurled Black Gold
