RU2S-A220

Active

IDEC Corporation

POWER RELAY, DPDT, 240 VAC, 10 A, RU SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

RU2S-A220

Active

IDEC Corporation

POWER RELAY, DPDT, 240 VAC, 10 A, RU SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RU2S-A220

Approval Agency	CSA, TUV, cURus, CE
Coil Current	3.6 mA
Coil Resistance	18.2 kOhms
Coil Type	Non Latching
Coil Voltage	240 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Socketable
Must Operate Voltage	192 VAC
Must Release Voltage	72 VAC/DC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

RU2S-A Series

POWER RELAY, DPDT, 240 VAC, 10 A, RU SERIES, SOCKET, NON LATCHING

Part	Operate Time	Coil Resistance	Contact Rating (Current)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Mounting Type	Release Time	Must Release Voltage	Coil Current	Must Operate Voltage	Approval Agency	Coil Type	Contact Form	Relay Type	Switching Voltage [Max]	Coil Voltage	Contact Material
IDEC Corporation RU2S-A220	20 ms	18.2 kOhms	10 A	Plug In	-55 °C	60 °C	300 W, 2500 VA	Socketable	20 ms	72 VAC/DC	3.6 mA	192 VAC	CE, CSA, cURus, TUV	Non Latching	DPDT (2 Form C)	General Purpose	30 VDC, 250 VAC	240 VAC	Silver (Ag)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.46
		10	$ 11.76
		25	$ 11.14
		50	$ 10.70
		100	$ 10.27
		250	$ 9.73
		500	$ 9.35
		1000	$ 8.97
Newark	Each	1	$ 15.67
		5	$ 15.29
		10	$ 14.89
		25	$ 14.10
		50	$ 13.32
		100	$ 12.54

Description

General part information

RU2S-A Series

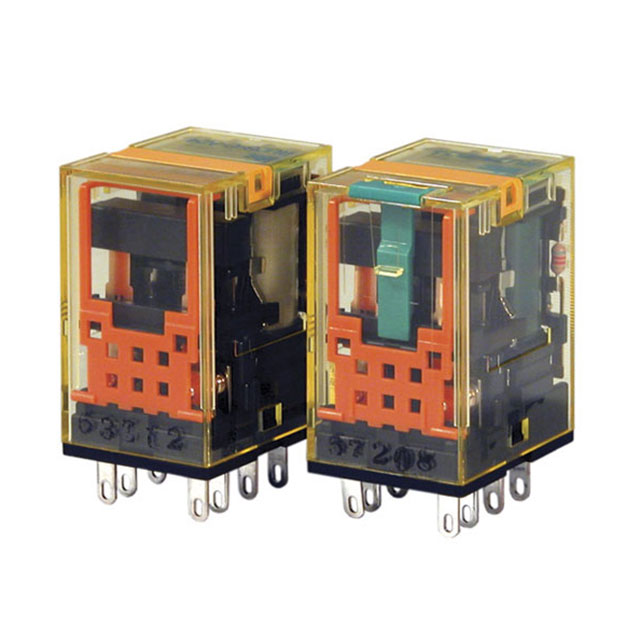

The RU2S-A220 is a general-purpose Power Relay with non-latching coil. This relay with DPDT silver tin indium contacts and quick connect terminals. This RU-series relay features non-polarized LED indicator standard. Solder-free construction (spot welded, no solder points, lead-free). No internal wires. Mechanical flag indicator standard. Manual latching lever with color coding for AC or DC coil. Snap-on marking plate standard.
