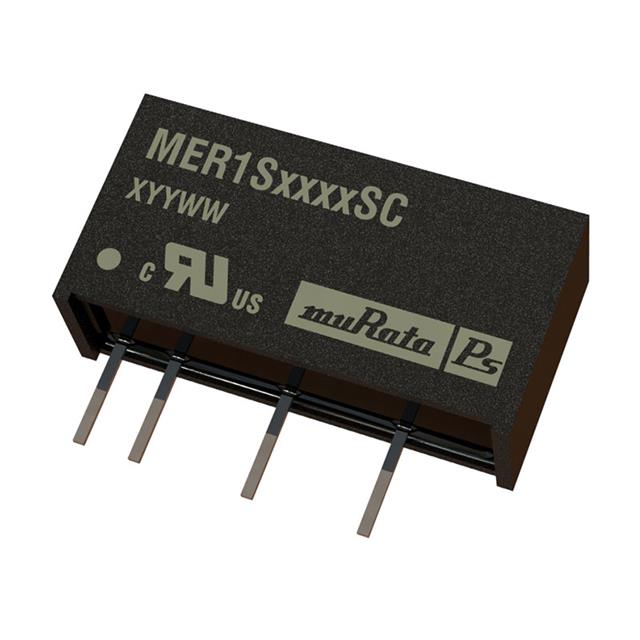

MER1S1205SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

MER1S1205SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MER1S1205SC	MER1S12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	200 mA	67 - 200 mA
Efficiency	84 %	84 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [y]	6.2 mm	6.2 mm
Size / Dimension [y]	0.24 "	0.24 "
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.2 mm	10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	5 V	5 - 15 V

MER1S12 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Part	Type	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Max) [Max]	Applications	Mounting Type	Voltage - Isolation	Voltage - Output 1	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MER1S1205SC	Isolated Module	10.8 V	1	200 mA	84 %	13.2 V	ITE (Commercial)	Through Hole	1000 V	5 V	7-SIP Module, 4 Leads	85 °C	-40 °C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm
Murata Power Solutions Inc. MER1S1215SC	Isolated Module	10.8 V	1	67 mA	88 %	13.2 V	ITE (Commercial)	Through Hole	1000 V	15 V	7-SIP Module, 4 Leads	85 °C	-40 °C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm
Murata Power Solutions Inc. MER1S1209SC	Isolated Module	10.8 V	1		86.5 %	13.2 V	ITE (Commercial)	Through Hole	1000 V	9 V	7-SIP Module, 4 Leads	85 °C	-40 °C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.11
		5	$ 6.08
		10	$ 6.04
		25	$ 5.97
		50	$ 5.82
		100	$ 5.53
		250	$ 5.18
		500	$ 4.83
		1000	$ 4.52
Newark	Each	25	$ 6.58
		50	$ 6.43
		100	$ 6.13

Description

General part information

MER1S12 Series

The MER1S1205SC is an isolated single-output DC/DC Converter offers improved regulation performance for applications where a wide output voltage variation cannot be tolerated. It is ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation to reduce switching noise. This device features high performance and more efficient.
