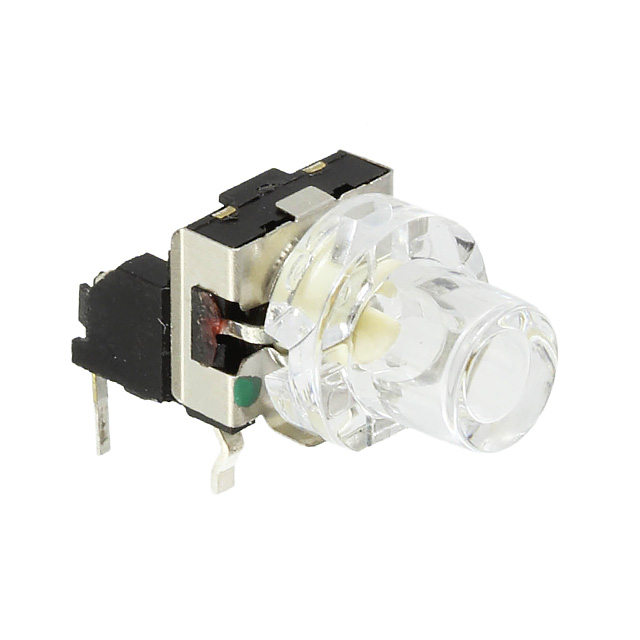

TL6215RF200GDT

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TL6215RF200GDT

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.21
		10	$ 4.22
		25	$ 3.88
		100	$ 3.41
		300	$ 3.07
		500	$ 2.92
		1000	$ 2.72
		2400	$ 2.50

Description

General part information

TL6215 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6215RF200GDT	TL6215 Series

Actuator Height off PCB, Vertical	-	10.5 mm
Actuator Height off PCB, Vertical	-	5.35 - 10.7 mm
Actuator Length, Right Angle	-	4.45 mm
Actuator Length, Right Angle [custom]	9.6 mm	9.6 mm
Actuator Orientation	Side Actuated	Top Actuated, Side Actuated
Actuator Type	Round Button	Oval Button, Round Button, Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Green	LED, Blue, Red, Green, White
Illumination Voltage (Nominal)	2.1 VDC	1.95 - 3.3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Operating Force	200 gf	200 - 450 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	7.7 mm	7.7 mm
Outline [y]	6.65 mm	6.37 - 6.65 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.45 mm	0.45 mm
Termination Style	PC Pin	PC Pin

TL6215 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Operating Force	Termination Style	Ingress Protection	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Circuit	Outline [y]	Outline [x]	Switch Function	Switch Travel	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Mechanical Life	Mounting Type	Illumination Voltage (Nominal)	Actuator Type	Actuator Height off PCB, Vertical	Actuator Length, Right Angle [custom]	Actuator Length, Right Angle
E-Switch TL6215VF200BGT	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof	10.5 mm	0.05 A, 12 VDC	SPST-NO	6.37 mm	7.7 mm	Off-Mom	0.45 mm	Blue, LED	-20 C	70 °C	Top Actuated	500000 Cycles	Through Hole	3.3 VDC	Oval Button
E-Switch TL6215VF200RET	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.37 mm	7.7 mm	Off-Mom	0.45 mm	LED, Red	-20 C	70 °C	Top Actuated	500000 Cycles	Through Hole	1.95 VDC	Round Button	10.7 mm
E-Switch TL6215RF200RDT	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.65 mm	7.7 mm	Off-Mom	0.45 mm	LED, Red	-20 C	70 °C	Side Actuated	500000 Cycles	Through Hole, Right Angle	1.95 VDC	Round Button		9.6 mm
E-Switch TL6215RF200GDT	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.65 mm	7.7 mm	Off-Mom	0.45 mm	Green, LED	-20 C	70 °C	Side Actuated	500000 Cycles	Through Hole, Right Angle	2.1 VDC	Round Button		9.6 mm
E-Switch TL6215VF450BNN	Illuminated	450 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.37 mm	7.7 mm	Off-Mom	0.45 mm	Blue, LED	-20 C	70 °C	Top Actuated	500000 Cycles	Through Hole	3.3 VDC	Plunger for Cap	5.35 mm
E-Switch TL6215VF200GNN	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.37 mm	7.7 mm	Off-Mom	0.45 mm	Green, LED	-20 C	70 °C	Top Actuated	500000 Cycles	Through Hole	2.1 VDC	Plunger for Cap	5.35 mm
E-Switch TL6215VF200GBT	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.37 mm	7.7 mm	Off-Mom	0.45 mm	Green, LED	-20 C	70 °C	Top Actuated	500000 Cycles	Through Hole	2.1 VDC	Round Button	8.8 mm
E-Switch TL6215RF200BNN	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.65 mm	7.7 mm	Off-Mom	0.45 mm	Blue, LED	-20 C	70 °C	Side Actuated	500000 Cycles	Through Hole, Right Angle	3.3 VDC	Plunger for Cap			4.45 mm
E-Switch TL6215RF450BNN	Illuminated	450 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.65 mm	7.7 mm	Off-Mom	0.45 mm	Blue, LED	-20 C	70 °C	Side Actuated	500000 Cycles	Through Hole, Right Angle	3.3 VDC	Plunger for Cap			4.45 mm
E-Switch TL6215VF200WBT	Illuminated	200 gf	PC Pin	IP67 - Dust Tight, Waterproof		0.05 A, 12 VDC	SPST-NO	6.37 mm	7.7 mm	Off-Mom	0.45 mm	LED, White	-20 C	70 °C	Top Actuated		Through Hole		Plunger for Cap	8.8 mm
