Q-2H02T0001.75M

Active

Amphenol Custom Cable

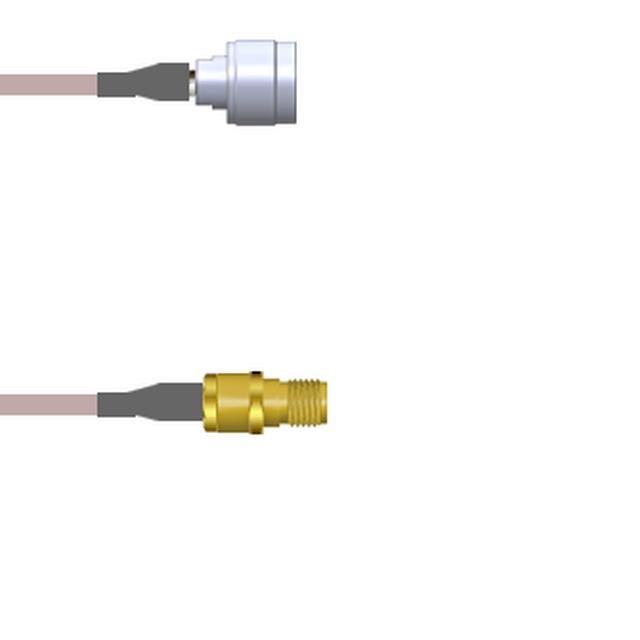

CBL ASSY SMA-NTYPE JCK-PL 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H02T0001.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JCK-PL 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H02T0001.75M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2H02T0 Series

Part	1st Connector Mounting Type	1st Connector	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Cable Type	Length	Length	Color	2nd Contact Gender	Style	Features	1st Contact Gender	2nd Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2H02T0001009i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	9 "	228.6 mm	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug
Amphenol Custom Cable Q-2H02T0001048i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	48 in	1200 mm	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug	4 ft
Amphenol Custom Cable Q-2H02T0001.75M	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	29.53 "	750 mm	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug
Amphenol Custom Cable Q-2H02T0001.25M	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178			Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug		9.843 "	250 mm
Amphenol Custom Cable Q-2H02T0001072i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	72 in	1.8 m	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug	6 ft
Amphenol Custom Cable Q-2H02T0001060i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	5 '	1.5 m	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug	5 ft
Amphenol Custom Cable Q-2H02T0001084i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	84 in	2.1 m	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug	7 ft
Amphenol Custom Cable Q-2H02T0001036i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	36 in	91.44 cm	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug
Amphenol Custom Cable Q-2H02T0001003M	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	118.1 in	3 m	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug	9.8 '
Amphenol Custom Cable Q-2H02T0001024i	Free Hanging (In-Line)	SMA Jack	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-178	24 "	609.6 mm	Copper	Male	SMA to N-Type	Shielded	Female	N-Type Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.54
		25	$ 78.05
		50	$ 76.56
		100	$ 75.08
		250	$ 73.59

Description

General part information

Q-2H02T0 Series

Cable Assembly Coaxial SMA to N-Type RG-178 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
