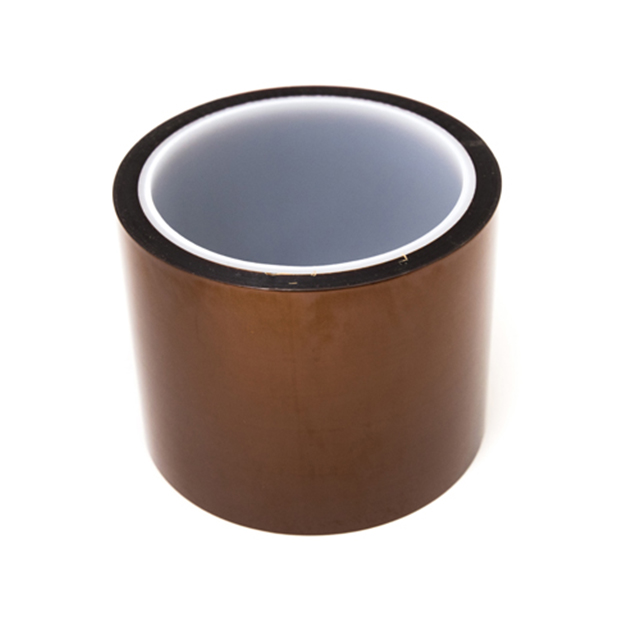

Specification	KPTLS-3

Adhesive	Silicone
Backing	Polyimide
Carrier	Polyimide
Color	Amber
Length (ft)	108 ft
Length (yd)	36 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range (Max)	500 °F
Thickness	0.002 in
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	0.001 in
Usage	Anti Static, High Temperature, Masking
Width	3 in

KPT Series

...

Part	Usage	Tape Type	Length (yd)	Length (ft)	Color	Width	Thickness	Thickness - Adhesive	Backing	Carrier	Thickness - Backing, Carrier	Adhesive	Temperature Range (Max)	Temperature Range (Min)	Temperature Range (Single)
Bertech KPT-75MM	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	2.95 in	0.0025 in	0.001 in	Polyimide	Polyimide	0.0015 in	Silicone	500 °F	-99 °F
Bertech KPT5-15/16	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	0.94 in	0.0065 in	0.0015 in	Polyimide	Polyimide	0.005 in	Silicone	500 °F	-99 °F
Bertech KPTLS-9	Masking	Masking	36 yd	108 ft	Amber	9 in	0.002 in	0.001 in	Polyimide	Polyimide	0.001 in	Silicone			260 °C
Bertech KPT2-15/16	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	0.94 in	0.0035 in	0.0015 in	Polyimide	Polyimide	0.002 in	Silicone	500 °F	-99 °F
Bertech KPTLS-1 3/8	Masking	Masking	36 yd	108 ft	Amber	1.38 in	0.002 in	0.001 in	Polyimide	Polyimide	0.001 in	Silicone			260 °C
Bertech KPT5-11/16	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	0.69 in	0.0065 in	0.0015 in	Polyimide	Polyimide	0.005 in	Silicone	500 °F	-99 °F
Bertech KPT2-5/8	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	0.63 in	0.0035 in	0.0015 in	Polyimide	Polyimide	0.002 in	Silicone	500 °F	-99 °F
Bertech KPT-11/16	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	0.69 in	0.0025 in	0.001 in	Polyimide	Polyimide	0.0015 in	Silicone	500 °F	-99 °F
Bertech KPTLS-15MM	Masking	Masking	36 yd	108 ft	Amber	0.59 in	0.002 in	0.001 in	Polyimide	Polyimide	0.001 in	Silicone			260 °C
Bertech KPT-4 1/2	Flame Retardant Masking UL Recognized	Masking	36 yd	108 ft	Amber	4.5 in	0.0025 in	0.001 in	Polyimide	Polyimide	0.0015 in	Silicone	500 °F	-99 °F
