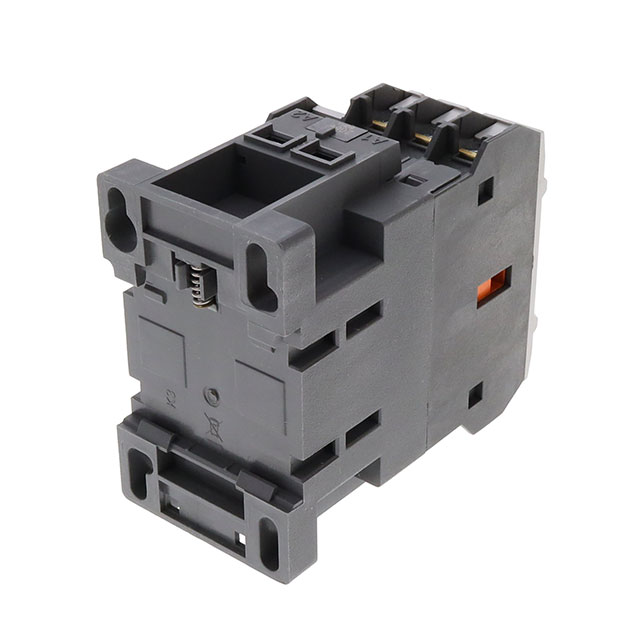

MC-22B-AC208V
ActiveAltech Corporation
CONTACTOR 3P22A 1 NO/1 NC 208VAC
MC-22B-AC208V
ActiveAltech Corporation
CONTACTOR 3P22A 1 NO/1 NC 208VAC
Description
General part information
MC-22 Series
CONTACTOR 3P22A 1 NO/1 NC 208VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | MC-22B-AC208V |
|---|---|
| Coil Current | 7.2 mA |
| Coil Power | 1.5 W |
| Coil Resistance | 28.84 kOhms |
| Coil Voltage | 208 VAC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 22 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 133 VAC |
| Must Release Voltage | 100 VAC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -5 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 600 VAC |
| Termination Style | Screw Terminal |
