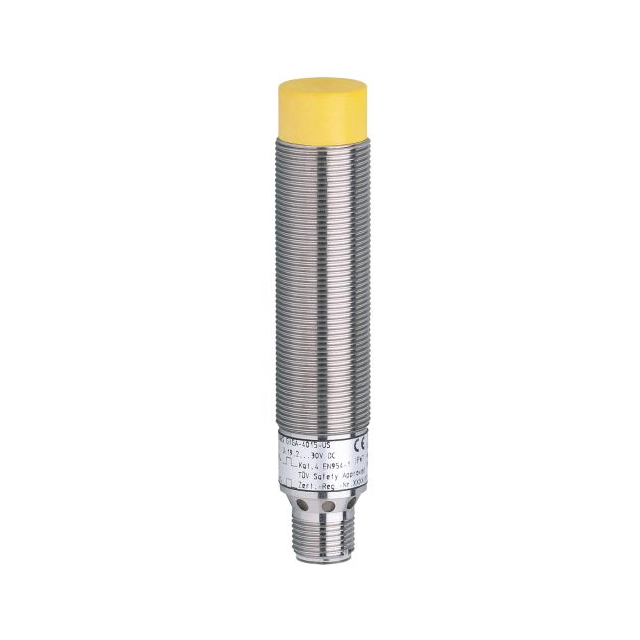

GG505S

Active

ifm efector, inc.

SENSOR PROX INDUCTIVE 3-6MM CYL

Search across all available documentation for this part.

Active

ifm efector, inc.

SENSOR PROX INDUCTIVE 3-6MM CYL

Technical Specifications

Parameters and characteristics for this part

Specification	GG505S

Indicator [custom]	LED
Ingress Protection	IP68, IP69K
Material - Body	Polybutylene Terephthalate (PBT), Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Cylinder, Threaded - M18
Sensing Distance [Max]	0.236 "
Sensing Distance [Max]	6 mm
Sensing Distance [Min]	3 mm
Sensing Distance [Min]	0.118 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	19.2 V

SENSOR PROX INDUCTIVE 3-6MM CYL

Part	Material - Body	Voltage - Supply [Min]	Voltage - Supply [Max]	Shielding	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Package / Case	Indicator [custom]	Ingress Protection	Termination Style
ifm efector, inc. GG505S	Polybutylene Terephthalate (PBT), Stainless Steel	19.2 V	30 VDC	Unshielded	3 mm	0.236 "	6 mm	0.118 "	70 °C	-25 °C	Inductive	Cylinder, Threaded - M18	LED	IP68, IP69K	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 284.00

General part information

SENSOR PROX INDUCTIVE 3-6MM CYL

Technical documentation and resources
