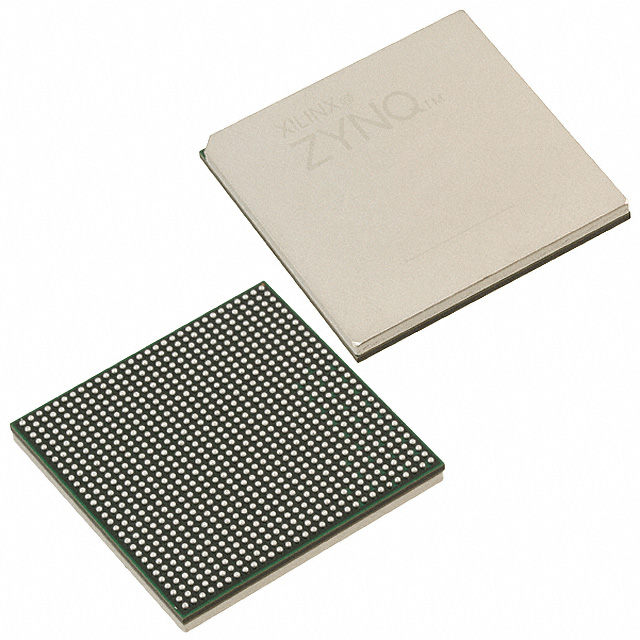

XCZU4EG-1FBVB900E

Active

AMD

IC SOC CORTEX-A53 900FCBGA

Deep-Dive with AI

Search across all available documentation for this part.

XCZU4EG-1FBVB900E

Active

AMD

IC SOC CORTEX-A53 900FCBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XCZU4EG-1FBVB900E

Architecture	MCU, FPGA
Connectivity	UART/USART, EBI/EMI, USB OTG, MMC/SD/SDIO, I2C, SPI, CANbus, Ethernet
Core Processor	Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, ARM Mali™-400 MP2
Number of I/O	204
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	0 °C
Package / Case	FCBGA, 900-BBGA
Peripherals	DMA, WDT
Primary Attributes	192K+ Logic Cells, Zynq®UltraScale+™ FPGA
RAM Size	256 KB
Speed	500 MHz
Speed	600 MHz
Speed	1.2 GHz
Supplier Device Package	900-FCBGA (31x31)

XCZU4 Series

Part	RAM Size	Primary Attributes	Connectivity	Package / Case	Peripherals	Speed	Speed	Speed	Core Processor	Architecture	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
AMD XCZU4EG-1SFVC784E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	784-BFBGA FCBGA	DMA WDT	500 MHz	600 MHz	1.2 GHz	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	252	100 °C	0 °C
AMD XCZU4EV-L1SFVC784I	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	784-BFBGA FCBGA	DMA WDT	500 MHz	600 MHz	1.2 GHz	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	252	100 °C	-40 C
AMD XCZU4EV-1FBVB900E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	500 MHz	600 MHz	1.2 GHz	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	204	100 °C	0 °C	900-FCBGA (31x31)
AMD XCZU4CG-1FBVB900E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	500 MHz	1.2 GHz		Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	MCU FPGA	204	100 °C	0 °C	900-FCBGA (31x31)
AMD XCZU4EG-1FBVB900E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	500 MHz	600 MHz	1.2 GHz	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	204	100 °C	0 °C	900-FCBGA (31x31)
AMD XCZU4EV-L2FBVB900E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	1.3 GHz 533 MHz 600 MHz			ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	204	100 °C	0 °C	900-FCBGA (31x31)
AMD XCZU4EG-L2FBVB900E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	1.3 GHz 533 MHz 600 MHz			ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	204	100 °C	0 °C	900-FCBGA (31x31)
AMD XCZU4EG-2FBVB900E	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	1.3 GHz 533 MHz 600 MHz			ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	204	100 °C	0 °C	900-FCBGA (31x31)
AMD XCZU4CG-1SFVC784I	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	784-BFBGA FCBGA	DMA WDT	500 MHz	1.2 GHz		Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	MCU FPGA	252	100 °C	-40 C
AMD XCZU4EV-1FBVB900I	256 KB	192K+ Logic Cells Zynq®UltraScale+™ FPGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	900-BBGA FCBGA	DMA WDT	500 MHz	600 MHz	1.2 GHz	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	MCU FPGA	204	100 °C	-40 C	900-FCBGA (31x31)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1498.75

Description

General part information

XCZU4 Series

Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, ARM Mali™-400 MP2 System On Chip (SOC) IC Zynq® UltraScale+™ MPSoC EG Zynq®UltraScale+™ FPGA, 192K+ Logic Cells 500MHz, 600MHz, 1.2GHz 900-FCBGA (31x31)
