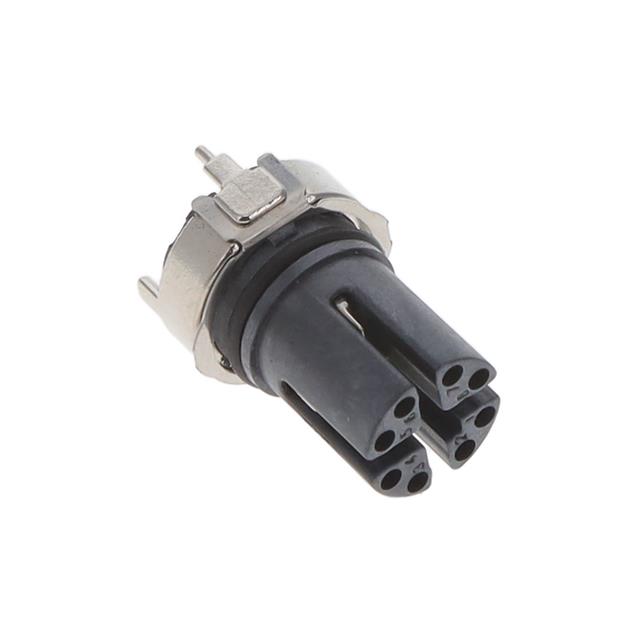

MSXS-08PFFT-EE0001
ActiveAmphenol LTW
CONN FMALE INSERT 8P GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSXS-08PFFT-EE0001
ActiveAmphenol LTW
CONN FMALE INSERT 8P GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSXS-08PFFT-EE0001 |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | X |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.37 | |
| 10 | $ 6.66 | |||
| 25 | $ 6.29 | |||
| 50 | $ 6.14 | |||
| Digi-Reel® | 1 | $ 7.37 | ||
| 10 | $ 6.66 | |||
| 25 | $ 6.29 | |||
| 50 | $ 6.14 | |||
| Tape & Reel (TR) | 100 | $ 5.83 | ||
| 300 | $ 5.22 | |||
| 500 | $ 4.91 | |||
| 1000 | $ 4.30 | |||
Description
General part information
MSXS-08PFFT Series
8 Position Circular Connector Insert, Female Sockets Solder
