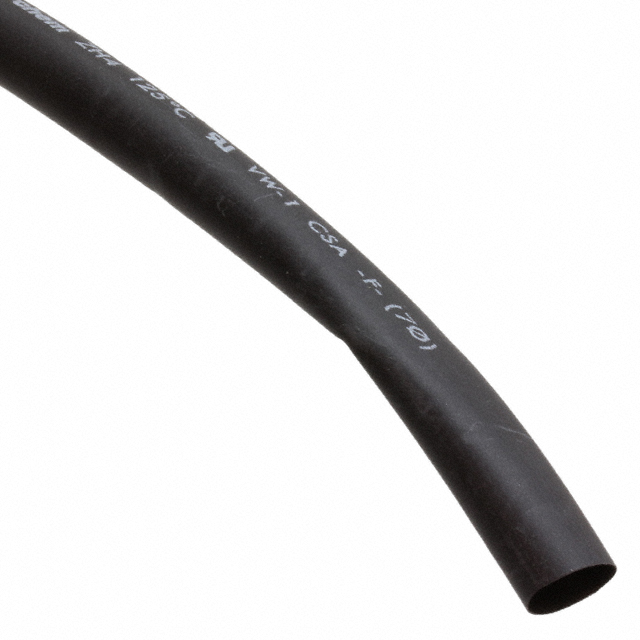

ZH4-7.0-0-SP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING 1=350 METERS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZH4-7.0-0-SP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING 1=350 METERS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZH4 Series

Heat Shrink Tubing, Flexible 0.295" (7.49mm) 2 to 1 Black 1148.3' (350.0m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZH4-7.0-0-SP-SM	ZH4 Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered [diameter]	3.51 mm	0.51 - 5 mm
Inner Diameter - Recovered [diameter]	0.138 in	0.02 - 0.197 in
Inner Diameter - Supplied	-	5.5 mm
Inner Diameter - Supplied [diameter]	0.295 in	0.055 - 0.413 in
Inner Diameter - Supplied [diameter]	7.49 mm	1.4 - 10.49 mm
Length	-	50 - 2000 m
Length	-	164 - 6562 ft
Length [x]	350 m, 1 m	1 - 500 m
Length [x]	1148.3 ', 3.28 ft	3.28 - 1640.4 ft
Material	Halogen Free, Polyolefin (PO)	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.011 "	0.01 - 0.011 in
Recovered Wall Thickness	0.28 mm	0.25 - 0.28 mm
Shrink Temperature	70 °C	70 °C
Shrinkage Ratio	2 to 1	2 to 1
Type	Tubing, Flexible	Tubing, Flexible

ZH4 Series

HEATSHRINK TUBING 1=1600 METERS

Part	Recovered Wall Thickness	Recovered Wall Thickness	Features	Length [x]	Length [x]	Material	Color	Shrink Temperature	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Supplied
TE Connectivity Raychem Cable Protection ZH4-2.5-0-SP-SM	0.01 in	0.25 mm	Flame Retardant	1 m	3.28 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.11 in	2.79 mm	0.049 in	1.24 mm	Tubing, Flexible	1600 m	5249.3 ft	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-2.0-0-SP-SM	0.01 in	0.25 mm	Flame Retardant	1 m	3.28 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.092 in	2.34 mm	0.039 in	0.99 mm	Tubing, Flexible			125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-1.5-0-SP-SM	0.01 in	0.25 mm	Flame Retardant	1 m	3.28 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.076 in	1.93 mm	0.03 in	0.76 mm	Tubing, Flexible	2000 m	6562 ft	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-9.0-0-FSP-SM	0.011 "	0.28 mm	Flame Retardant	1 m	3.28 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.375 in	9.53 mm	0.178 in	4.52 mm	Tubing, Flexible	50 m	164 ft	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-5.0-0-SP-SM	0.01 in	0.25 mm	Flame Retardant			Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.217 in				Tubing, Flexible			125 °C	-30 ░C	5.5 mm
TE Connectivity Raychem Cable Protection ZH4-3.0-0-SP-SM	0.01 in	0.25 mm	Flame Retardant	1 m	3.28 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.13 in	3.3 mm	0.06 in	1.52 mm	Tubing, Flexible	1400 m	4593.4 ft	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-8.0-0-FSP-SM	0.011 "	0.28 mm	Flame Retardant	1 m, 500 m	3.28 ft, 1640.4 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.335 in	8.51 mm	0.157 in	3.99 mm	Tubing, Flexible			125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-7.0-0-SP-SM	0.011 "	0.28 mm	Flame Retardant	1 m, 350 m	3.28 ft, 1148.3 '	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.295 in	7.49 mm	0.138 in	3.51 mm	Tubing, Flexible			125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-10.0-0-FSP-SM	0.011 "	0.28 mm	Flame Retardant	1 m, 500 m	3.28 ft, 1640.4 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.413 in	10.49 mm	0.197 "	5 mm	Tubing, Flexible			125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH4-1.0-0-SP-SM	0.01 in	0.25 mm	Flame Retardant	1 m	3.28 ft	Halogen Free, Polyolefin (PO)	Black	70 °C	2 to 1	0.055 in	1.4 mm	0.02 in	0.51 mm	Tubing, Flexible			125 °C	-30 ░C
