KN8C22005SA--21

Active

Essentra Access Solutions

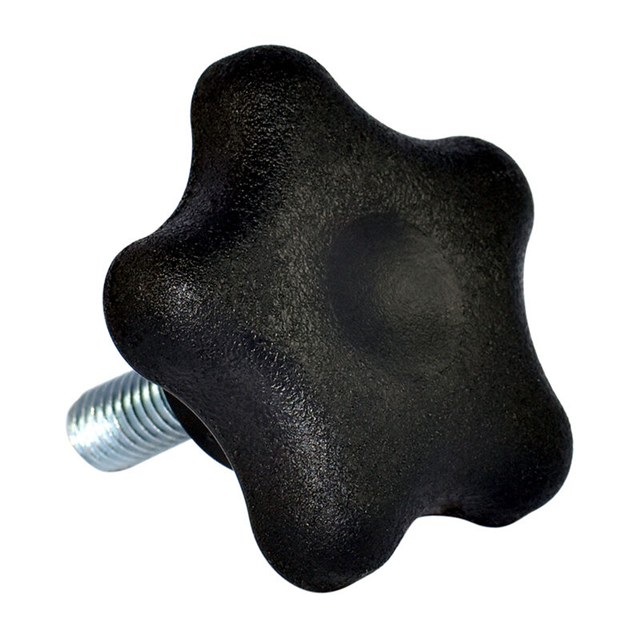

CLAMPING STAR KNOB 2.250 IN DIAM

Search across all available documentation for this part.

Active

Essentra Access Solutions

CLAMPING STAR KNOB 2.250 IN DIAM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Indicator [custom]	Color	Diameter [diameter]	Diameter [diameter]	Material	Height [z]	Height [z]	Shaft Size	Style	Height [diameter]	Height [diameter]	Height [z]	Diameter
Essentra Access Solutions KN8C----T9-BN21	2 Arm	No Indicator	Black	88.9 mm	3.5 in	Nylon	1.13 "	28.7 mm	1/2"-13
Essentra Access Solutions KN8C1250F6---21	Fluted	No Indicator	Black	60.45 mm	2.38 in	Polypropylene	1.2 in	30.48 mm	1/2"-13	Clamping
Essentra Access Solutions KN8C----R7-BS21	Fluted	No Indicator	Black	61.47 mm	2.42 in	Polypropylene			1/2"-13	Clamping	1.26 in	32 mm
Essentra Access Solutions KN8C----B5SL-21	Smooth	No Indicator	Black	41.4 mm	1.63 "	Polypropylene	1.52 in	38.61 mm	1/2"-13	Ball
Essentra Access Solutions KN8C----B3-L-21	Smooth	No Indicator	Black	35.05 mm	1.38 in	Polypropylene		1.28 in	1/2"-13	Ball			32.51 mm
Essentra Access Solutions KN8C----R5IB-21	Fluted	No Indicator	Black	48.01 mm	1.89 in	Polypropylene			1/2"-13	Clamping	1.22 in	30.99 mm
Essentra Access Solutions KN8C1500F6---21	Fluted	No Indicator	Black	60.45 mm	2.38 in	Polypropylene	1.23 "	31.24 mm	1/2"-13	Clamping
Essentra Access Solutions KN8C2000F6---21	Fluted	No Indicator	Black	60.05 mm	2.364 "	Polypropylene	1.23 "	31.24 mm	1/2"-13	Clamping
Essentra Access Solutions KN8C----4P7--21	4 Arm	No Indicator	Black		2.5 in	Nylon	1.11 in	28.19 mm	1/2"-13	Clamping				63.5 mm
Essentra Access Solutions KN8C22005SA--21	5 Arm	No Indicator	Black	57.15 mm	2.25 in	Polypropylene	1.03 in	26.16 mm	1/2"-13	Clamping

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Arm Knob 1/2"-13 Shaft with No Indicator Polypropylene Black
