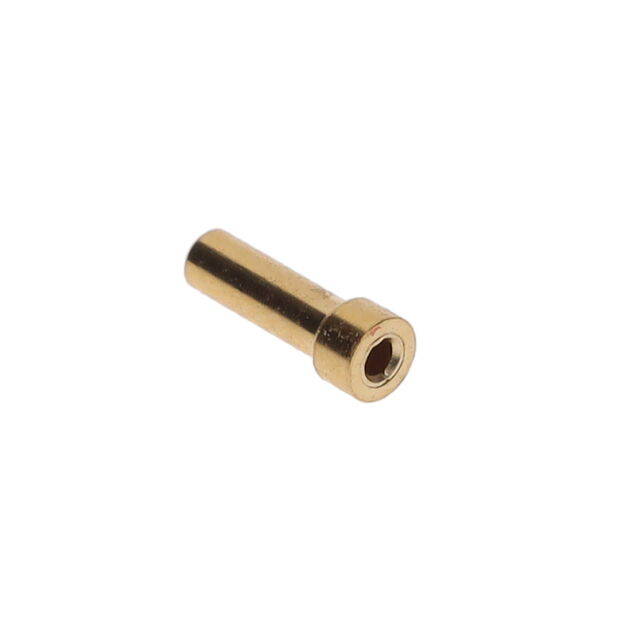

5660-0-15-15-30-14-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
5660-0-15-15-30-14-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5660-0-15-15-30-14-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.068 in |
| Flange Diameter [diameter] | 1.73 mm |
| Mounting Hole Diameter [diameter] | 0.051 in |
| Mounting Hole Diameter [diameter] | 1.3 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 4.57 mm |
| Socket Depth | 0.18 in |
| Tail Type | Standard Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.31 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.06 | |||
| 50 | $ 1.04 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.72 | |||
| 3000 | $ 0.65 | |||
Description
General part information
5660-0 Series
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Solder
