357-042-540-204
ActiveEDAC Inc.

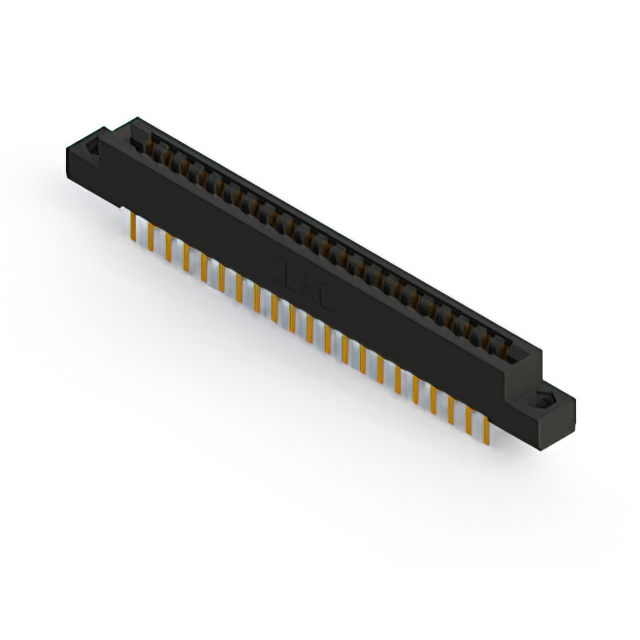

CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-042-540-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-042-540-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
357-042 Series
...
| Part | Number of Rows | Contact Type | Contact Material | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Mounting Type | Color | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Through Hole Right Angle | Black | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1 | 10 Áin | 0.25 Ám | Dual | 42 | 84 | Gold | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm |
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Through Hole | Black | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | 10 Áin | 0.25 Ám | Dual | 42 | Gold | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | |
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Black | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 10 Áin | 0.25 Ám | Single | 42 | 42 | Gold | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm | ||
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole Right Angle | Black | Polyester Thermoplastic | 1 | 10 Áin | 0.25 Ám | Single | 42 | 42 | Gold | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | |||
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Board Edge Straddle Mount | Black | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Dual | 42 | Gold | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | |||
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole Right Angle | Black | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | 1 | 10 Áin | 0.25 Ám | Single | 42 | 42 | Gold | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Through Hole Right Angle | Black | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | 10 Áin | 0.25 Ám | Dual | 42 | 84 | Gold | -40 °C | 105 ░C | Wire Wrap | 0.156 in | 3.96 mm |
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Black | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 10 Áin | 0.25 Ám | Single | 42 | 42 | Gold | -40 °C | 105 ░C | Solder Eyelet(s) | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Through Hole | Black | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | 10 Áin | 0.25 Ám | Dual | 42 | 84 | Gold | -40 °C | 105 ░C | Solder Eyelet(s) | 0.156 in | 3.96 mm |
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Through Hole | Black | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | 10 Áin | 0.25 Ám | Single | 42 | 42 | Gold | -40 °C | 105 ░C | Solder | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.42 | |
Description
General part information
357-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
