826851-3

Active

TE Connectivity AMP Connectors

CONN HDR 8POS 0.25 TIN PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HDR 8POS 0.25 TIN PCB

Technical Specifications

Parameters and characteristics for this part

CONN HDR 8POS 0.25 TIN PCB

Part	Contact Material	Fastening Type	Number of Rows	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Post	Insulation Color	Connector Type	Termination	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Shape	Style	Contact Length - Post	Contact Length - Post
TE Connectivity AMP Connectors 826851-3	Copper Alloy	Locking Ramp	1	All	Female Socket	14.75 mm	0.581 in	8	Tin	Natural	Header	Solder	6.35 mm	0.25 in	Through Hole	Circular	Board to Cable/Wire	0.146 in	3.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

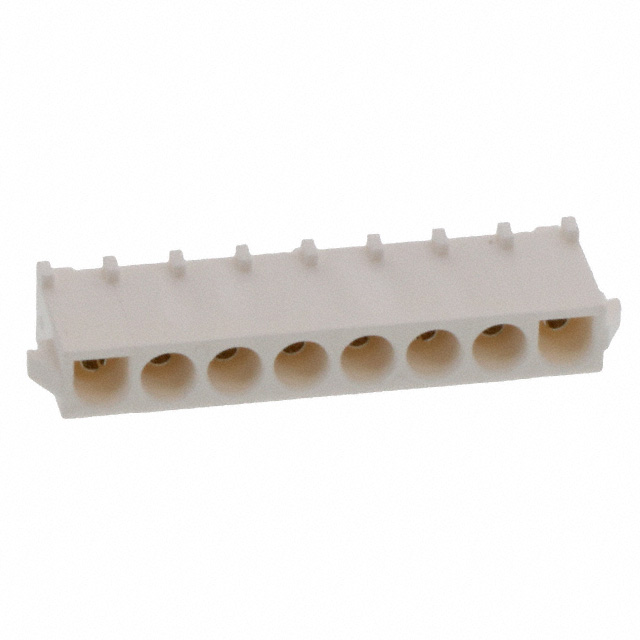

8 Position Header Connector 0.250" (6.35mm) Through Hole Tin

Technical documentation and resources
