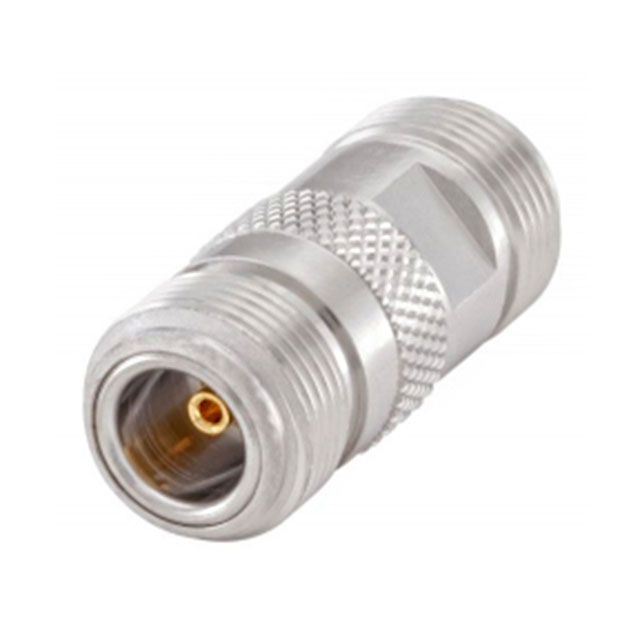

53K102-K00N5

Active

Rosenberger

CONN ADAPT JACK-JACK N 50 OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT JACK-JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	53K102-K00N5

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Adapter Type	Frequency - Max [Max]	Style	Mating Cycles	Conversion Type	Body Finish	Center Contact Plating	Center Contact Material	Convert To (Adapter End)	Dielectric Material	Adapter Series	Center Gender	Impedance	Body Material	Mounting Type	Convert From (Adapter End)
Rosenberger 53K102-K00N5	Jack to Jack	11 GHz	Straight	500	Same Series	White Bronze	Gold	Bronze	Female Socket N Jack	Polytetrafluoroethylene (PTFE)	N to N	Female to Female	50 Ohms	Brass	Free Hanging (In-Line)	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
