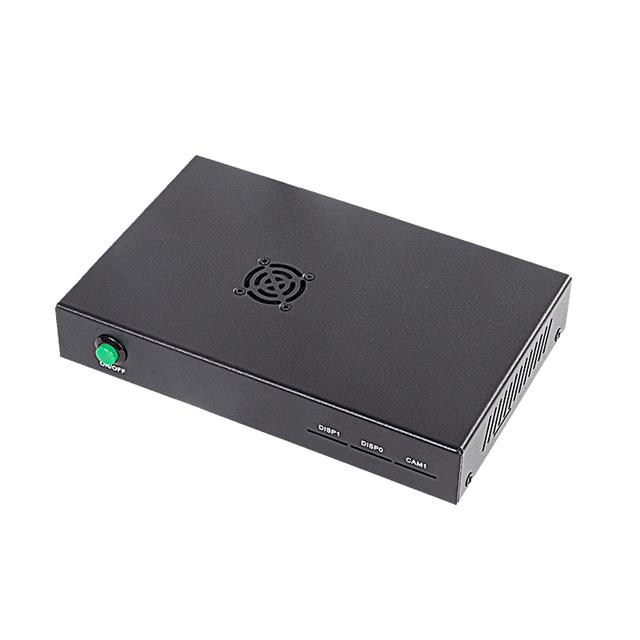

ED-CM4IO-0132-C

Active

EDATEC

SBC 1.5GHZ 4 CORE 32GB/1GB RAM

Search across all available documentation for this part.

Active

EDATEC

SBC 1.5GHZ 4 CORE 32GB/1GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ED-CM4IO-0132-C

Core Processor	Raspberry Pi CM4 # CM4001032: ARM Cortex-A72
Ethernet	100 Mbps, 10 Mbps, 1000 Mbps
Ethernet	RJ45
Expansion Site/Bus	microSD, PCIe
Form Factor	Desktop
Number of Cores	4
RAM Capacity/Installed	1 GB, 32 GB
Size / Dimension [x]	6.752 in
Size / Dimension [x]	171.5 mm
Size / Dimension [y]	4.311 in
Size / Dimension [y]	109.5 mm
Speed	1.5 GHz
Storage Interface	eMMC
USB	USB 2.0 (2)
Video Outputs	HDMI

SBC 1.5GHZ 4 CORE 32GB/1GB RAM

Part	Ethernet	Ethernet	Core Processor	Speed	USB	Storage Interface	Form Factor	Expansion Site/Bus	Number of Cores	Video Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	RAM Capacity/Installed
EDATEC ED-CM4IO-0132-C	10 Mbps, 100 Mbps, 1000 Mbps	RJ45	Raspberry Pi CM4 # CM4001032: ARM Cortex-A72	1.5 GHz	USB 2.0 (2)	eMMC	Desktop	microSD, PCIe	4	HDMI	4.311 in	6.752 in	171.5 mm	109.5 mm	1 GB, 32 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 116.25

General part information

Single Board Computer 1.5GHz 4 Core 32GB/1GB RAM Raspberry Pi CM4 # CM4001032: ARM Cortex-A72

Technical documentation and resources
