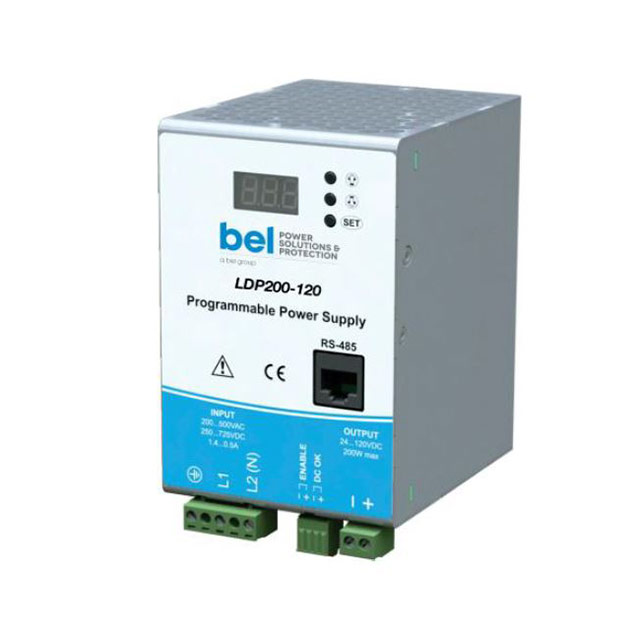

LDP200-120

Active

Bel Power Solutions

AC/DC CONVERTER 200W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 200W

Technical Specifications

Parameters and characteristics for this part

Specification	LDP200-120

Applications	ITE (Commercial)
Current - Output 1	4 A
Features	Remote On/Off, DC Input Capable, IP20, Adjustable Output, Load Sharing
Number of Outputs	1
Power (Watts)	200 W
Size / Dimension [x]	3.94 in
Size / Dimension [x]	100 mm
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Size / Dimension [z]	4.72 "
Size / Dimension [z]	120 mm
Type	Enclosed
Voltage - Input [Max]	725 VDC, 550 VAC
Voltage - Input [Min]	250 VDC, 170 VAC
Voltage - Isolation	4.2 kV

AC/DC CONVERTER 200W

Part	Voltage - Isolation	Number of Outputs	Applications	Features	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Type	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Bel Power Solutions LDP200-120	4.2 kV	1	ITE (Commercial)	Adjustable Output, DC Input Capable, IP20, Load Sharing, Remote On/Off	200 W	550 VAC, 725 VDC	170 VAC, 250 VDC	Enclosed	4 A	3.94 in	4.72 "	3.15 in	120 mm	80 mm	100 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 170 ~ 550 VAC (2 Phase), 250 ~ 725 VDC Input

Technical documentation and resources

No documents available
