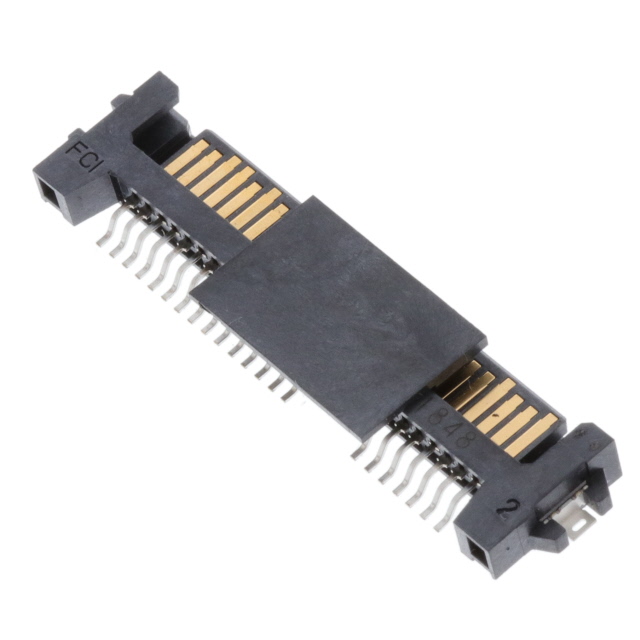

10101788-002CLF
ActiveAmphenol ICC (FCI)
CONN SATA PLUG 22POS SLD R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
10101788-002CLF
ActiveAmphenol ICC (FCI)
CONN SATA PLUG 22POS SLD R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10101788-002CLF |
|---|---|
| Connector Style | Shrouded, Plug |
| Connector Type | SATA |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Solder Retention, Board Guide |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 22 positions |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.32 | |
| 10 | $ 4.07 | |||
| 100 | $ 3.20 | |||
| Tape & Reel (TR) | 550 | $ 2.78 | ||
| 1100 | $ 2.47 | |||
| 1650 | $ 2.37 | |||
| 2750 | $ 2.26 | |||
| 3850 | $ 2.21 | |||
Description
General part information
10101788 Series
22 Position SATA Plug, Shrouded Connector Solder Surface Mount, Right Angle
Documents
Technical documentation and resources
