Specification	1761465-1

Card Thickness	0.062 in
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Features	Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.039 in
Read Out	Dual
Termination	Solder

1761465 Series

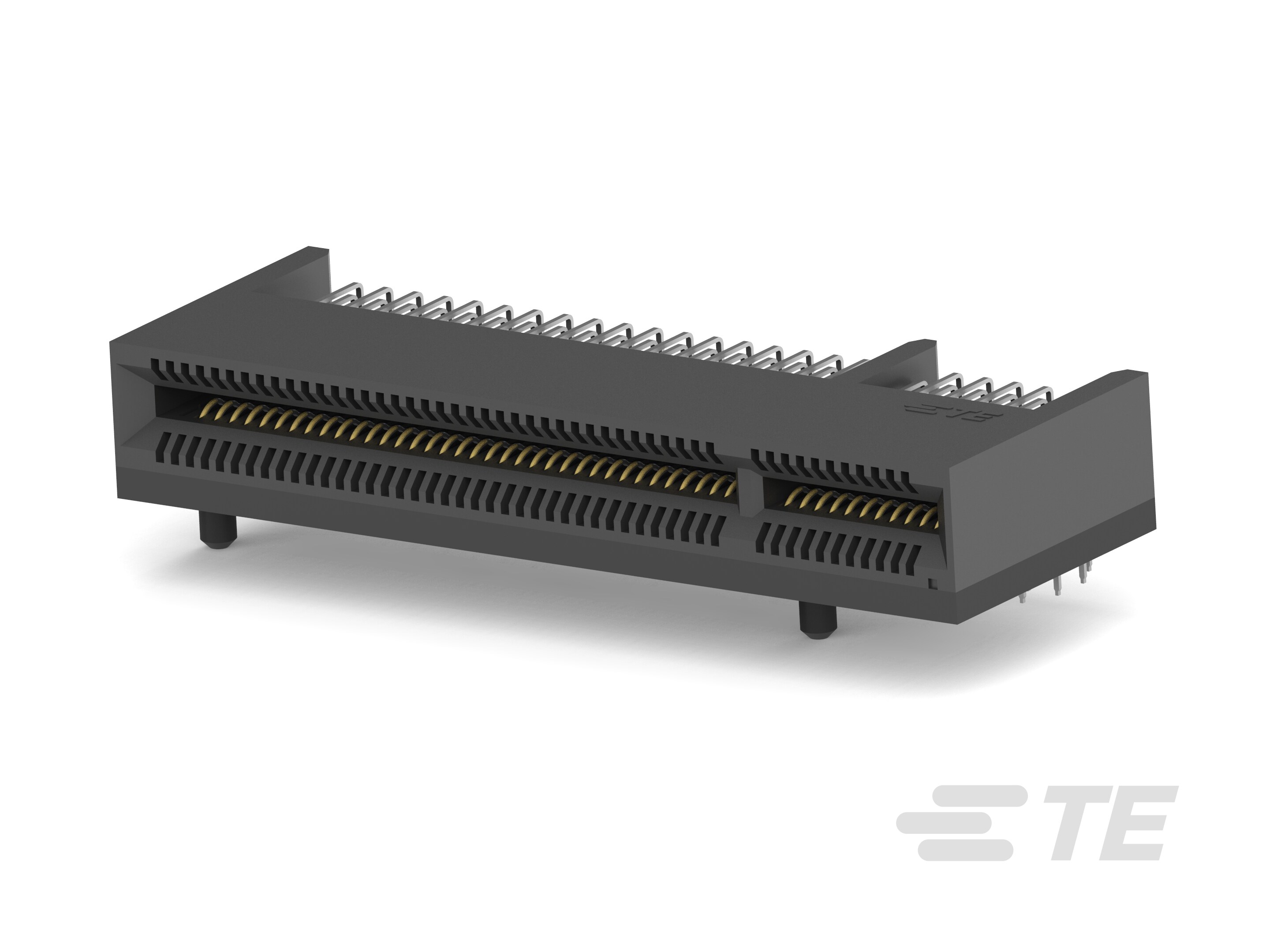

PCI Express / PCI Connectors pci expres ra assy 5.8mm - hole 3.1mm

Part	Material - Insulation	Card Type	Read Out	Gender	Number of Positions	Card Thickness	Pitch	Features	Color	Contact Finish Thickness	Contact Material	Termination	Mounting Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish

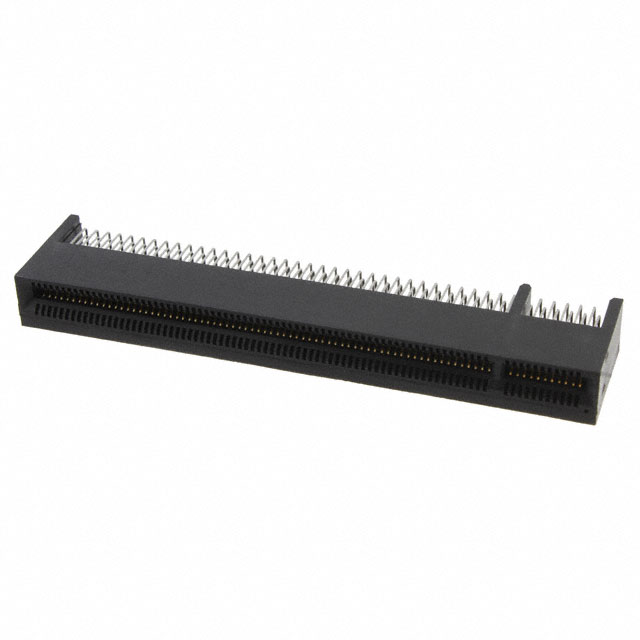

TE Connectivity AMP Connectors 2-1761465-4	Thermoplastic	PCI Express™	Dual	Female	164	0.062 in	0.039 in	Board Guide	Black	15 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 1-1761465-4	Thermoplastic	PCI Express™	Dual	Female	164	0.062 in	0.039 in	Board Guide	Black	30 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 1-1761465-1	Thermoplastic	PCI Express™	Dual	Female	36	0.062 in	0.039 in	Board Guide	Black	30 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 1761465-2	Thermoplastic	PCI Express™	Dual	Female	64	0.062 in	0.039 in	Board Guide	Black	30 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 2-1761465-3	Thermoplastic	PCI Express™	Dual	Female	98	0.062 in	0.039 in	Board Guide	Black	15 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 1761465-1	Thermoplastic	PCI Express™	Dual	Female	36	0.062 in	0.039 in	Board Guide	Black	30 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 3-1761465-4	Thermoplastic	PCI Express™	Dual	Female	164	0.062 in	0.039 in	Board Guide	Black	15 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 4-1761465-2	Thermoplastic	PCI Express™	Dual	Female	64	0.062 in	0.039 in	Board Guide	Black	30 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 5-1761465-1	Thermoplastic	PCI Express™	Dual	Female	36	0.062 in	0.039 in	Board Guide	Black	15 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
TE Connectivity AMP Connectors 4-1761465-4	Thermoplastic	PCI Express™	Dual	Female	164	0.062 in	0.039 in	Board Guide	Black	30 µin	Copper Alloy	Solder	Right Angle Through Hole	2	-40 °C	85 °C	Gold
