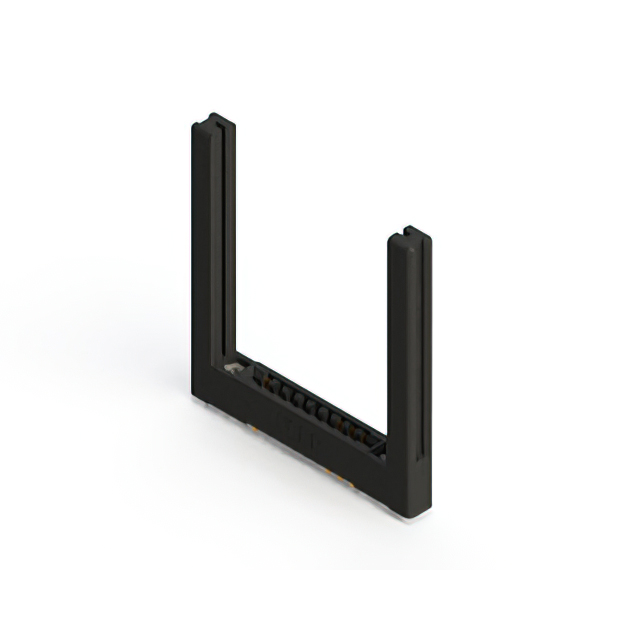

357-009-558-158
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-009-558-158
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-009-558-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-009 Series
...
| Part | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Read Out | Mounting Type | Contact Type | Termination Rows | Gender | Color | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Card Type | Number of Rows | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 9 | Card Guides | Single | Through Hole Right Angle | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Copper Alloy | Non Specified - Single Edge | 1 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Floating Bobbin Flush Mount | 18 | Dual | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Solder Eyelet(s) | Copper Alloy | Non Specified - Dual Edge | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | 0.116 in | 2.95 mm | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | 9 | Single | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Copper Alloy | Non Specified - Single Edge | 1 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | 0.128 " | 3.25 mm | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | 18 | Dual | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | 0.156 in | 3.96 mm | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 18 | Dual | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 18 | Card Guides | Dual | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 18 | Card Guides | Dual | Board Edge Straddle Mount | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Copper Alloy | Non Specified - Dual Edge | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Floating Bobbin Flush Mount | 9 | Single | Through Hole Right Angle | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Copper Alloy | Non Specified - Single Edge | 1 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | 0.116 in | 2.95 mm | |||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 18 | Dual | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 2 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 9 | Card Guides | Single | Through Hole | Semi Bellows | 1 | Female | Black | Polyester Thermoplastic | -40 °C | 105 ░C | Solder Eyelet(s) | Copper Alloy | Non Specified - Single Edge | 1 | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 9 | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
