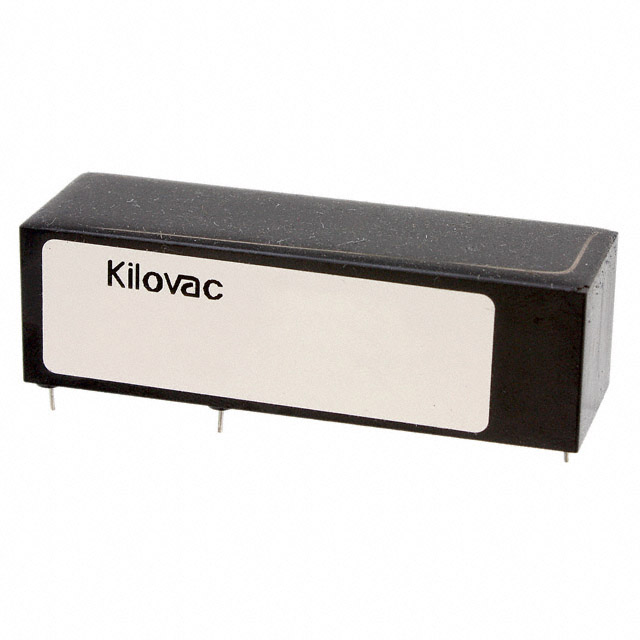

K81C335

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE SPDT 5A 26.5V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE SPDT 5A 26.5V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 5A 26.5V

Part	Must Operate Voltage	Release Time	Contact Rating (Current)	Contact Form	Operate Time	Coil Current	Must Release Voltage	Relay Type	Coil Resistance	Mounting Type	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Type	Coil Voltage
TE Connectivity Aerospace, Defense and Marine K81C335	16 VDC	10 ms	5 A	SPDT (1 Form C)	10 ms	91.4 mA	1 VDC	General Purpose	290 Ohms	Through Hole	10000 VDC	85 °C	-55 °C	PC Pin	Non Latching	26.5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 26.5VDC Coil Through Hole
