Specification	AS07108PO-R

Efficiency - dBA	86 dBA
Efficiency - Testing Length	500 mm
Efficiency - Testing Power	1 W
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	250 Hz
Frequency Range (Max)	20 kHz
Frequency Range (Min)	100 Hz
Height - Seated (Max)	0.984 in
Impedance	8 Ohm
Material - Cone	Paper
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max	5 VA
Power - Rated	3 W
Shape	Oval, Rectangular Frame
Size / Dimension Length	2.795 in
Size / Dimension Width	1.614 in
Technology	Magnetic
Termination	Solder Eyelet(s)
Type	General Purpose

AS Series

Part	Height - Seated (Max)	Technology	Material - Cone	Shape	Efficiency - Testing Power	Efficiency - Testing Length	Termination	Power - Rated	Type	Port Location	Frequency Range (Min)	Frequency Range (Max)	Power - Max	Size / Dimension Width	Size / Dimension Length	Impedance	Frequency - Self Resonant	Efficiency - dBA	Efficiency - Type	Material - Magnet	Size / Dimension Diameter	Ingress Protection	Efficiency - Testing	Ratings	Ingress Protection Description	Ingress Protection IP Rating
PUI Audio, Inc. AS04008PS-4W-R	0.472 in	Magnetic	Paper	Oval Rectangular Frame	1 W	500 mm	Solder Eyelet(s)	2 W	General Purpose	Top	380 Hz	20 kHz	4 VA	1.114 in	1.575 in	8 Ohm	380 Hz	84 dBA	Sound Pressure Level (SPL)	Nd-Fe-B
PUI Audio, Inc. AS01308MR-R	0.087 in	Magnetic	Polyester Polyethylene Terephthalate (PET)	Round	200 mW	100 mm	Solder Pads	200 mW	General Purpose	Top	1.05 kHz	20 kHz	400 mW			8 Ohm	1050 Hz	86 dBA	Sound Pressure Level (SPL)	Nd-Fe-B	0.512 in

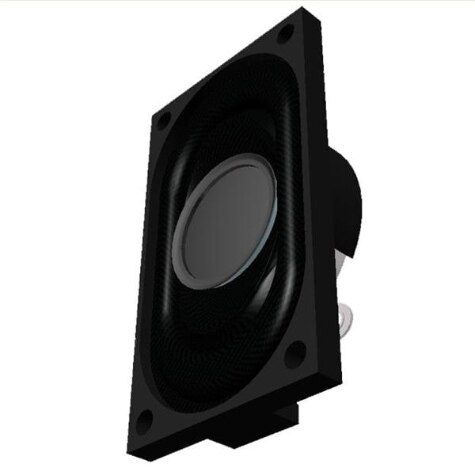

PUI Audio, Inc. AS03508CO-2-R	0.315 in	Magnetic	Cloth	Oval Rectangular Frame	1 W	500 mm	Solder Eyelet(s)	1 VA	General Purpose	Top	500 Hz	20 kHz	2 VA	0.787 in	1.378 in	8 Ohm	500 Hz	84 dBA	Sound Pressure Level (SPL)	Nd-Fe-B
PUI Audio, Inc. AS04008CO-WR-R	0.24 in	Magnetic	Cloth	Oval Rectangular Frame	1 W	500 mm	Solder Pads	2 W	General Purpose	Top	200 Hz	20 kHz	3 VA	0.787 in	1.575 in	8 Ohm	400 Hz	83 dBA	Sound Pressure Level (SPL)	Nd-Fe-B		Water Resistant
PUI Audio, Inc. AS05008PR-6-R	0.728 in	Magnetic	Paper	Round			Solder Eyelet(s)	400 mW	General Purpose	Top	500 Hz	5 kHz	700 mW			8 Ohm	500 Hz	85 dBA	Sound Pressure Level (SPL)	N35	1.969 in		1 W
PUI Audio, Inc. AS06608MR-LW152-R	0.484 in	Magnetic	Polyester Polyethylene Terephthalate (PET)	Round			Wire Leads	500 mW	General Purpose	Top	380 Hz	7.5 kHz	1 VA			8 Ohm	380 Hz	84 dBA	Sound Pressure Level (SPL)	Nd-Fe-B	2.598 in		1 W	60601-1-8 IEC
PUI Audio, Inc. AS01508MS-SP15-WP-R	0.098 in	Magnetic		Rectangular			Solder Pads	700 mW	Receiver	Top	500 Hz	20 kHz	1 VA	0.433 in	0.591 in	8 Ohm	500 Hz	91 dBA	Sensitivity	Nd-Fe-B					Dust Tight Waterproof	IP67
PUI Audio, Inc. AS07108PO-R	0.984 in	Magnetic	Paper	Oval Rectangular Frame	1 W	500 mm	Solder Eyelet(s)	3 W	General Purpose	Top	100 Hz	20 kHz	5 VA	1.614 in	2.795 in	8 Ohm	250 Hz	86 dBA	Sound Pressure Level (SPL)	Nd-Fe-B
PUI Audio, Inc. AS04008CO-2-R	0.315 in	Magnetic	Cloth	Oval Rectangular Frame	1 W	500 mm	Solder Eyelet(s)	1.5 W	General Purpose	Top	200 Hz	20 kHz	3 VA	0.787 in	1.575 in	8 Ohm	550 Hz	84 dBA	Sound Pressure Level (SPL)	Nd-Fe-B
