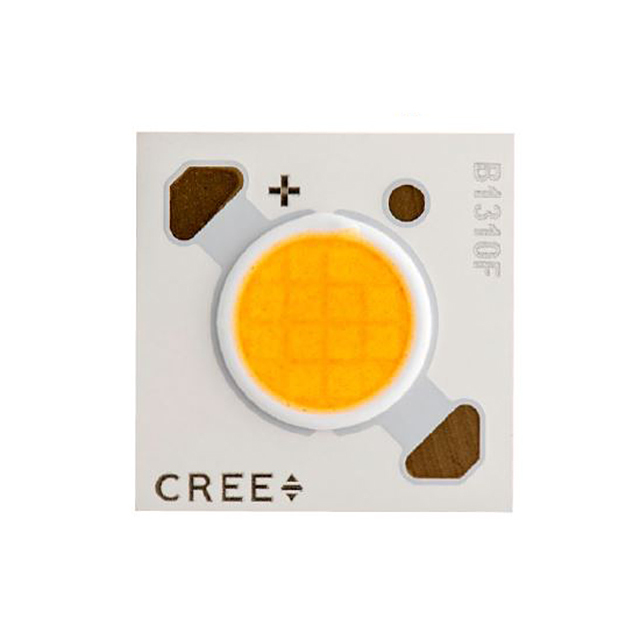

CXB1310-0000-000F0UK230Q

Active

Cree LED

XLAMP CXA GEN2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB1310-0000-000F0UK230Q

Active

Cree LED

XLAMP CXA GEN2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1310-0000-000F0UK230Q

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.4 A
Height [z]	1.55 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia
Lumens/Watt @ Current - Test	99 lm/W
Luminous Flux @ Current/Temperature	1245 lm
Size / Dimension [x]	13.35 mm
Size / Dimension [y]	13.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	18 V

CXB1310 Series

Part	Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Current - Max [Max]	Height [z]	Lens Type	Voltage - Forward (Vf) (Typ)	Type	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Color	Temperature - Test	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Configuration	CCT (K)
Cree LED CXB1310-0000-000N0HN235G	350 mA	1710 lm	1650 lm	1590 lm	700 mA	1.55 mm	Flat	36 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	131 lm/W	80	6 mm Dia	Square	3500 K
Cree LED CXB1310-0000-000N0BN265E	350 mA	1710 lm	1650 lm	1590 lm	700 mA	1.55 mm	Flat	36 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Cool White	85 °C	131 lm/W	70	6 mm Dia	Square	6500 K
Cree LED CXB1310-0000-000F0ZJ430H			1191 lm		1.4 A	1.55 mm	Flat	18 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	95 lm/W	95	6 mm Dia	Square	3000 K
Cree LED CXB1310-0000-000F0UJ430U			1160 lm		1.4 A	1.55 mm	Flat	18 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	92 lm/W	90	6 mm Dia	Square	3000 K
Cree LED CXB1310-0000-000N0UK235G	350 mA		1245 lm		700 mA	1.55 mm	Flat	36 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	99 lm/W	90	6 mm Dia	Square	3500 K
Cree LED CXB1310-0000-000N0UM231Q	350 mA	1485 lm	1433 lm	1380 lm	700 mA	1.55 mm	Flat	36 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	114 lm/W	90	6 mm Dia	Square	3100 K
Cree LED CXB1310-0000-000F0BN465E		1830 lm	1770 lm	1710 lm	1.4 A	1.55 mm	Flat	18 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Cool White	85 °C	140 lm/W	70	6 mm Dia	Square	6500 K
Cree LED CXB1310-0000-000F0HM427H			1538 lm		1.4 A	1.55 mm	Flat	18 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	122 lm/W	80	6 mm Dia	Square	2700 K
Cree LED CXB1310-0000-000F0UK430G		1380 lm	1335 lm	1290 lm	1.4 A	1.55 mm	Flat	18 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	106 lm/W	90	6 mm Dia	Square	3000 K
Cree LED CXB1310-0000-000F0UK230Q			1245 lm		1.4 A	1.55 mm	Flat	18 V	Chip On Board (COB)	115 °	13.35 mm	13.35 mm	Warm White	85 °C	99 lm/W	90	6 mm Dia	Square	3000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.56
Newark	Each	100	$ 10.95
		250	$ 9.52
		500	$ 9.25

Description

General part information

CXB1310 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB1310 White, Warm Square
