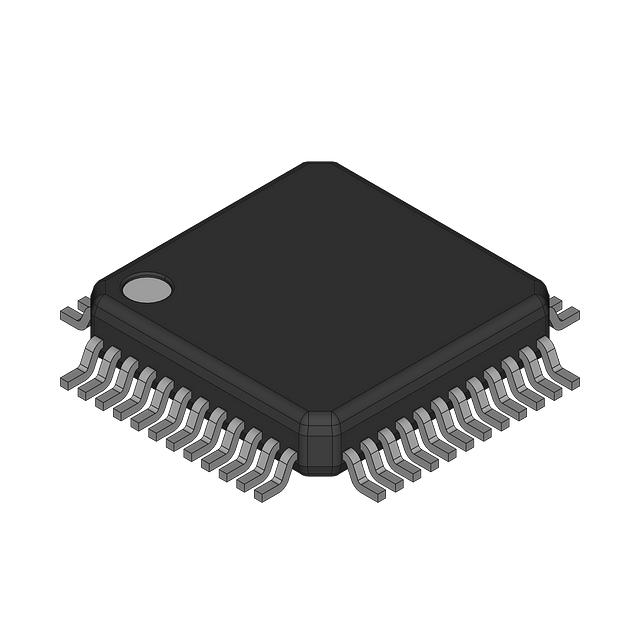

DSP56F801FA80E

Active

Freescale Semiconductor

IC MCU 16BIT 16KB FLASH 48LQFP

Search across all available documentation for this part.

Active

Freescale Semiconductor

IC MCU 16BIT 16KB FLASH 48LQFP

Technical Specifications

Parameters and characteristics for this part

IC MCU 16BIT 16KB FLASH 48LQFP

Part	Speed	Peripherals	Core Processor	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Program Memory Size	Supplier Device Package	RAM Size	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Package / Case	Core Size	Oscillator Type	Connectivity
Freescale Semiconductor DSP56F801FA80E	80 MHz	POR, PWM, WDT	56800	FLASH	12 b	8	16 KB	48-LQFP (7x7)	1 K	Surface Mount	85 °C	-40 °C	11	48-LQFP	16-Bit	Internal	SCI, SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	27	$ 11.53

General part information

56800 56F8xx Microcontroller IC 16-Bit 80MHz 16KB (8K x 16) FLASH 48-LQFP (7x7)

Technical documentation and resources

No documents available
