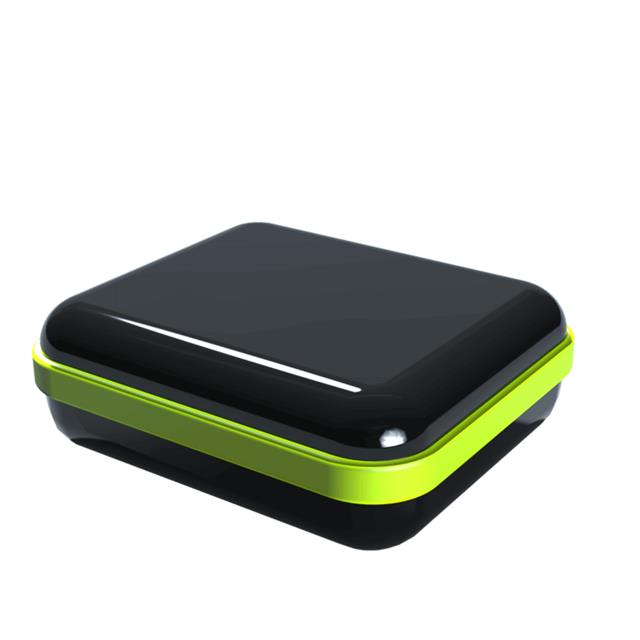

CX23ABKANG

Active

Serpac

ENCL IP67 BLK 1.68"X1.45"X0.6"

Search across all available documentation for this part.

Active

Serpac

ENCL IP67 BLK 1.68"X1.45"X0.6"

Technical Specifications

Parameters and characteristics for this part

Specification	CX23ABKANG

Area (L x W)	15.7 cm²
Area (L x W)	2.43 in²
Color	Black, Neon Green
Container Type	Enclosure
Design	Cover Included, Hand Held
Height [z]	15.24 mm
Height [z]	0.6 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-2
Ratings	NEMA 4X, IP67, 13, 12
Size / Dimension [x]	42.67 mm
Size / Dimension [x]	1.68 "
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.83 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material Flammability Rating	Thickness	Thickness	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	Material	Ratings	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color
Serpac CX23ABKABK	UL94 V-2	2.03 mm	0.08 "	15.24 mm	0.6 in	Enclosure	15.7 cm²	2.43 in²	Plastic Polycarbonate	12 13 IP67 NEMA 4X	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	Black
Serpac CX23ABKANG	UL94 V-2	2.03 mm	0.08 "	15.24 mm	0.6 in	Enclosure	15.7 cm²	2.43 in²	Plastic Polycarbonate	12 13 IP67 NEMA 4X	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	Black Neon Green
Serpac CX23ABKANO	UL94 V-2	2.03 mm	0.08 "	15.24 mm	0.6 in	Enclosure	15.7 cm²	2.43 in²	Plastic Polycarbonate	12 13 IP67 NEMA 4X	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	Black Neon Orange
Serpac CX23ABKABKYL	UL94 V-2	2.03 mm	0.08 "	15.24 mm	0.6 in	Enclosure	15.7 cm²	2.43 in²	Plastic Polycarbonate	12 13 IP67 NEMA 4X	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm
Serpac CX23ABKAOR	UL94 V-2	2.03 mm	0.08 "	15.24 mm	0.6 in	Enclosure	15.7 cm²	2.43 in²	Plastic Polycarbonate	12 13 IP67 NEMA 4X	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	Black Orange
Serpac CX23ABKABL	UL94 V-2	2.03 mm	0.08 "	15.24 mm	0.6 in	Enclosure	15.7 cm²	2.43 in²	Plastic Polycarbonate	12 13 IP67 NEMA 4X	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	Black Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.70

General part information

Enclosure Plastic, Polycarbonate Black, Neon Green Hand Held, Cover Included 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.600" (15.24mm)
