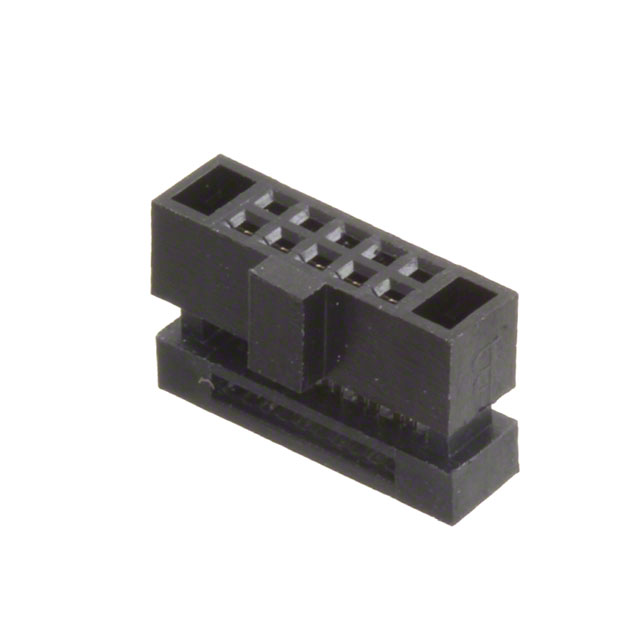

M50-3300542 - M50-3300542

M50-3300542

Active
Harwin Inc.

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50,M52 Series Spec SheetM50-3530842+5
M50-3300542 - M50-3300542

M50-3300542

Active
Harwin Inc.

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsM50,M52 Series Spec SheetM50-3530842+5

Technical Specifications

Parameters and characteristics for this part

SpecificationM50-3300542
Cable TerminationIDC
Connector TypeReceptacle
Contact FinishGold
Contact TypeFemale Socket
Fastening TypeLatch Holder
FeaturesFeed Through
Mounting TypeFree Hanging (In-Line)
Number of Positions10
Number of Rows2
Pitch [x]0.05 in
Pitch [x]1.27 mm
Row Spacing1.27 mm
Row Spacing0.05 in
Wire Gauge30 AWG
Wire TypeRibbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 2.63
10$ 2.38
25$ 2.26
54$ 2.21
108$ 2.10
270$ 1.84
540$ 1.79
1026$ 1.52
2538$ 1.42
NewarkEach 1$ 2.78
10$ 2.32
50$ 2.16
100$ 2.03
250$ 1.92
500$ 1.79
1000$ 1.70
2500$ 1.62

Description

General part information

M50-330 Series

10 Position Rectangular Receptacle Connector IDC Gold 30 AWG
