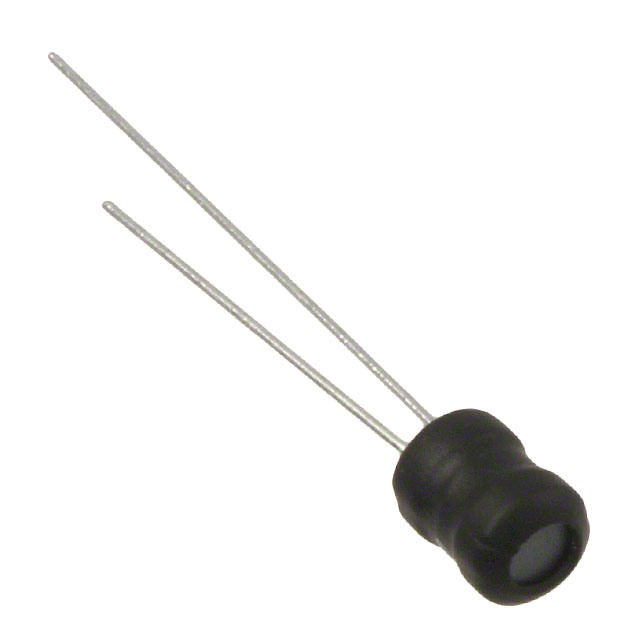

Specification	RLB0608-680KL

Current Rating	0.34 A
DC Resistance (DCR) (Max)	1.3 Ohm
Frequency - Self Resonant	6 MHz
Height - Seated (Max)	0.295 in
Inductance	68 µH
Inductance Frequency - Test	2.52 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Vertical Cylinder, Radial
Q	50
Shielding	Unshielded
Size / Dimension Diameter	0.197 in
Tolerance	10 %
Type	Drum Core, Wirewound

RLB0608 Series

Part	Frequency - Self Resonant	Shielding	Package / Case	Current Rating	DC Resistance (DCR) (Max)	Q	Inductance	Type	Operating Temperature (Max)	Operating Temperature (Min)	Material - Core	Inductance Frequency - Test	Tolerance	Height - Seated (Max)	Mounting Type	Size / Dimension Diameter
Bourns Inc. RLB0608-102KL	1.8 MHz	Unshielded	Radial Vertical Cylinder	100 mA	11.5 Ohm	55	1 mH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	252 kHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-390KL	7.5 MHz	Unshielded	Radial Vertical Cylinder	390 mA	900 mOhm	50	39 µH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	2.52 MHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-222KL	1 MHz	Unshielded	Radial Vertical Cylinder	85 mA	20 Ohm	50	2.2 mH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	252 kHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-3R3ML	50 MHz	Unshielded	Radial Vertical Cylinder	0.75 A	300 mOhm	60	3.3 µH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	7.96 MHz	20 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-680KL	6 MHz	Unshielded	Radial Vertical Cylinder	0.34 A	1.3 Ohm	50	68 µH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	2.52 MHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-471KL	2.8 MHz	Unshielded	Radial Vertical Cylinder	140 mA	6.5 Ohm	55	0.47 mH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	796 kHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-5R6KL	35 MHz	Unshielded	Radial Vertical Cylinder	0.64 A	350 mOhm	60	5.6 µH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	7.96 MHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-1R8ML	70 MHz	Unshielded	Radial Vertical Cylinder	880 mA	220 mOhm	60	1.8 µH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	7.96 MHz	20 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-821KL	2 MHz	Unshielded	Radial Vertical Cylinder	120 mA	9.6 Ohm	55	0.82 mH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	796 kHz	10 %	0.295 in	Through Hole	0.197 in
Bourns Inc. RLB0608-3R9ML	45 MHz	Unshielded	Radial Vertical Cylinder	0.72 A	300 mOhm	60	3.9 µH	Drum Core Wirewound	125 °C	-40 °C	Ferrite	7.96 MHz	20 %	0.295 in	Through Hole	0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RLB0608-680KL | Datasheet
