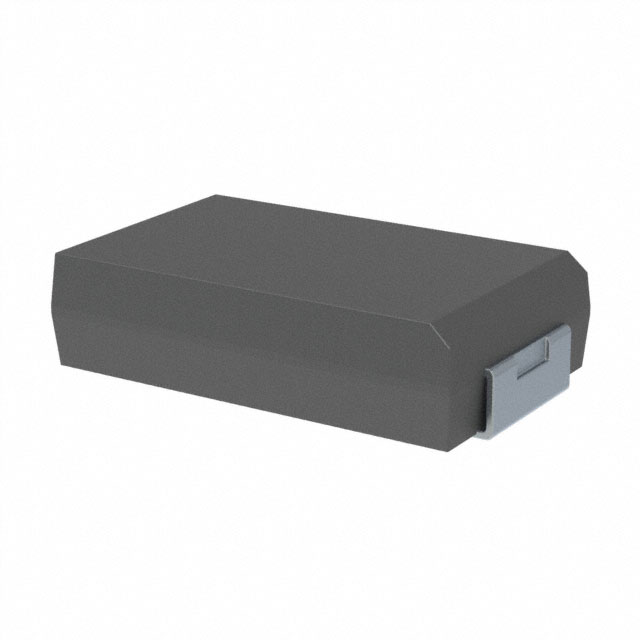

T520V227M010ATE040

Active

KEMET

CAP TANT POLY 220UF 10V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT52x,T530 Series, KO-CAP®Datasheet

T520V227M010ATE040

Active

KEMET

CAP TANT POLY 220UF 10V 2917

Deep-Dive with AI

DocumentsT52x,T530 Series, KO-CAP®Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T520V227M010ATE040

Capacitance	220 µF
ESR (Equivalent Series Resistance)	40 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	1.9 mm
Height - Seated (Max) [Max] [z]	0.075 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	V
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

T520V Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Manufacturer Size Code	Type	Tolerance	Mounting Type	Package / Case	Package / Case	Lifetime @ Temp.	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	ESR (Equivalent Series Resistance)
KEMET T520V337M2R5ATE007	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	330 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V	7 mOhm
KEMET T520V226M020ATE040	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	22 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	20 V	40 mOhm
KEMET T520V227M004ATE025	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	220 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	25 mOhm
KEMET T520V337M004ATE009	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	330 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	9 mOhm
KEMET T520V337M006ATE040	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	330 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	40 mOhm
KEMET T520V227M010ATE040	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	220 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	10 V	40 mOhm
KEMET T520V157M006AHE045	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	150 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	45 mOhm
KEMET T520V337M2R5ATE045	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	330 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V	45 mOhm
KEMET T520V476M016ATE045	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	47 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	16 V	45 mOhm
KEMET T520V157M004ATE007	105 ░C	-55 °C	General Purpose	V	Molded	20 %	Surface Mount	7343 Metric	2917	2000 Hrs	150 µF	1.9 mm	0.075 in	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	7 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.12
		10	$ 1.63
		50	$ 1.50
		100	$ 1.24
		500	$ 1.00
	Digi-Reel®	1	$ 2.12
		10	$ 1.63
		50	$ 1.50
		100	$ 1.24
		500	$ 1.00
	Tape & Reel (TR)	1000	$ 0.87
		2000	$ 0.84
		5000	$ 0.81
		10000	$ 0.80

Description

General part information

T520V Series

220 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 40mOhm @ 100kHz

Documents

Technical documentation and resources

T52x,T530 Series, KO-CAP®

Datasheet
