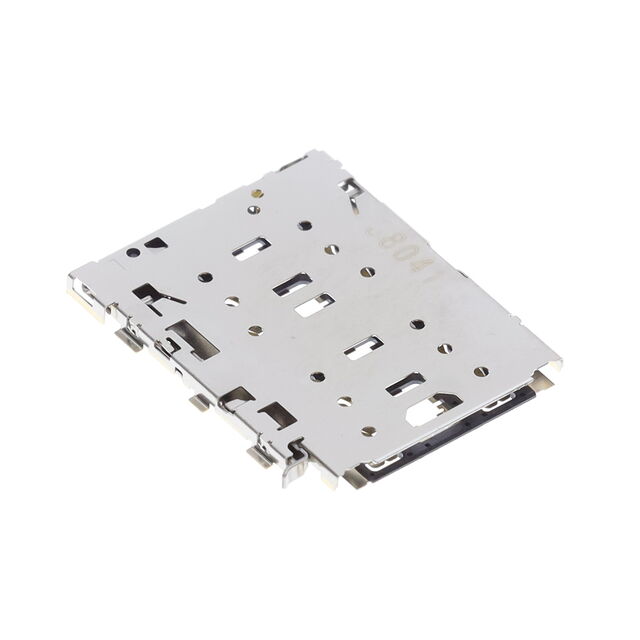

SF78S012VBAR1400
ActiveJAE Electronics
MEMORY CARD CONNECTORS DUAL NANO SIM 12P PUSH-EJECT
SF78S012VBAR1400
ActiveJAE Electronics
MEMORY CARD CONNECTORS DUAL NANO SIM 12P PUSH-EJECT
Description
General part information
SF78S012 Series
12 Position Card Connector Combo - NANO SIM, NANO SIM Surface Mount, Right Angle Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | SF78S012VBAR1400 |
|---|---|
| Card Type | Combo - NANO SIM, Nano SIM |
| Connector Type | Connector, Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 12 µin |
| Features | Switch, Pick and Place |
| Height Above Board | 0.051 in |
| Insertion, Removal Method | Push In, Push Out |
| Mounting Feature | Top, Normal, Standard |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 12 |
