M3CWK-1060K - M3CWK-10 T

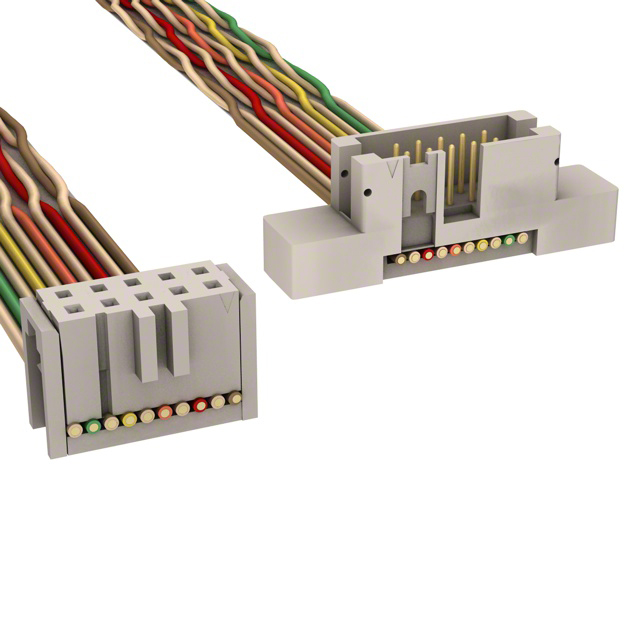

M3CWK-1060K

Active
3M

IDC CABLE - MKC10K/MC10F/MPL10K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 SeriesRibbon Cable Assembly Length Guide+1
M3CWK-1060K - M3CWK-10 T

M3CWK-1060K

Active
3M

IDC CABLE - MKC10K/MC10F/MPL10K

Deep-Dive with AI

Documents1700 SeriesRibbon Cable Assembly Length Guide+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationM3CWK-1060KM3CWK Series
Cable TerminationIDCIDC
ColorMultiple, Twisted Pair (Flat)Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector TypeSocket to PlugSocket to Plug
Contact FinishGoldGold
Contact Finish Thickness0.76 Ám0.76 Ám
Contact Finish Thickness30 Áin30 Áin
FeaturesPolarizing Key (Socket), Polarizing Key (Plug), FlangePolarizing Key (Socket), Polarizing Key (Plug), Flange
Length1.52 m1.52 - 508 mm
Length5 '1.67 - 5 ft
Length-1.5 - 3.34 ft
Length-1.02 - 914.4 mm
Length-6 "
Length-0.5 '
Number of Positions1010 - 60
Number of Positions-16
Number of Rows22
Pitch - Cable0.05 "0.05 "
Pitch - Cable1.27 mm1.27 mm
Pitch - Connector0.1 in0.1 in
Pitch - Connector2.54 mm2.54 mm
ShieldingUnshieldedUnshielded

M3CWK Series

IDC CABLE - MKC20K/MC20M/MPL20K

PartCable TerminationShieldingConnector TypePitch - ConnectorPitch - ConnectorNumber of RowsContact FinishNumber of PositionsContact Finish ThicknessContact Finish ThicknessPitch - CablePitch - CableColorLength [x]Length [x]FeaturesLengthLengthLengthNumber of PositionsLength
3M
M3CWK-2036R
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
20
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Ribbon
3 ft
914.4 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M
M3CWK-2018R
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
20
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Ribbon
1.5 ft
457.2 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M
M3CWK-6006J
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
60
0.76 Ám
30 Áin
0.05 "
1.27 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
152.4 mm
6 "
0.5 '
3M
M3CWK-6036J
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
60
0.76 Ám
30 Áin
0.05 "
1.27 mm
3 ft
914.4 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M
M3CWK-1618J
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
0.76 Ám
30 Áin
0.05 "
1.27 mm
1.5 ft
457.2 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
16
3M
M3CWK-2618R
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
26
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Ribbon
1.5 ft
457.2 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M
M3CWK-1636R
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Ribbon
3 ft
914.4 mm
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
16
3M
M3CWK-1006R
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
10
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Ribbon
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
152.4 mm
6 "
0.5 '
3M
M3CWK-5020K
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
50
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Twisted Pair (Flat)
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
508 mm
1.67 ft
3M
M3CWK-3006R
IDC
Unshielded
Socket to Plug
0.1 in
2.54 mm
2
Gold
30
0.76 Ám
30 Áin
0.05 "
1.27 mm
Multiple, Ribbon
Flange, Polarizing Key (Plug), Polarizing Key (Socket)
152.4 mm
6 "
0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 18.12
10$ 13.94
25$ 12.61
50$ 11.71
100$ 10.90
250$ 9.94
500$ 9.29
1000$ 8.71

Description

General part information

M3CWK Series

10 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)
