PM13560S-100M

Obsolete

Bourns Inc.

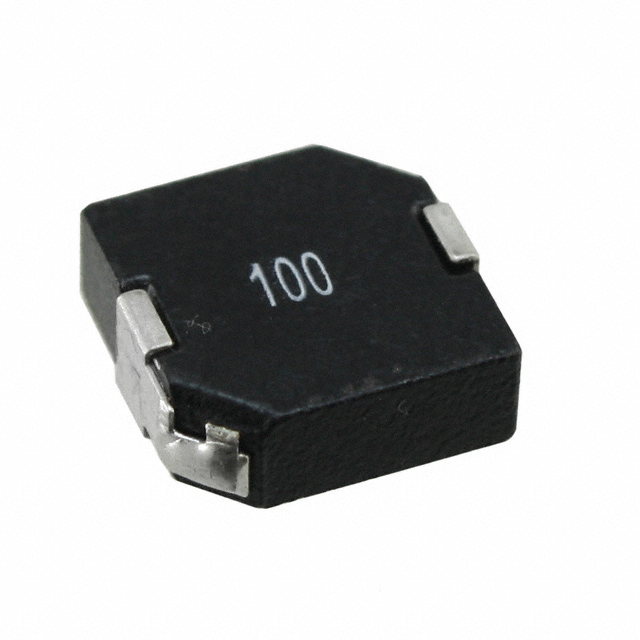

FIXED IND 10UH 7.5A 14.9MOHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 10UH 7.5A 14.9MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Inductance Frequency - Test	Mounting Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material - Core	Package / Case	Inductance	Type	Shielding	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)
Bourns Inc. PM13560S-100M	100 kHz	Surface Mount	14.9 mOhm	7.5 A	5.9 mm	0.232 "	0.547 in	13.9 mm	0.531 in	13.5 mm	Iron	Nonstandard	10 µH	Drum Core Wirewound	Shielded	20 %
Bourns Inc. PM13560S-6R0M	100 kHz	Surface Mount	10.7 mOhm	9.5 A	5.9 mm	0.232 "	0.547 in	13.9 mm	0.531 in	13.5 mm	Iron	Nonstandard	6 µH	Drum Core Wirewound	Shielded	20 %
Bourns Inc. PM13560S-100M-RC	100 kHz	Surface Mount	25.5 mOhm		5.9 mm	0.232 "	0.547 in	13.9 mm	0.531 in	13.5 mm	Iron	Nonstandard	10 µH	Drum Core Wirewound	Shielded	20 %	-55 °C	150 °C	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 µH Shielded Drum Core, Wirewound Inductor 7.5 A 14.9mOhm Max Nonstandard
