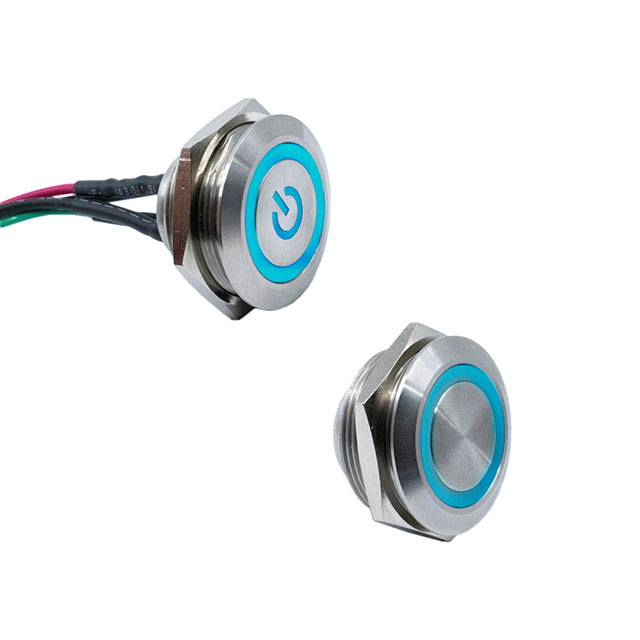

SV8FW3SS-3G1

Active

E-Switch

SWITCH PB SPST 2A 36V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPST 2A 36V

Technical Specifications

Parameters and characteristics for this part

Specification	SV8FW3SS-3G1

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 3.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

Part	Illumination Voltage (Nominal)	Switch Function	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Marking	Color - Actuator/Cap	Type	Electrical Life	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Ingress Protection	Termination Style
E-Switch SV8FW3SS-3G1	2 VDC 3.1 VDC	Off-Mom	Panel Mount Front	SPST-NO	25.2 mm	Button Flush Round	No Marking	Silver	Anti-Vandal Illuminated	200000 Cycles	Green/Red LED	-20 C	70 °C	36 VDC	2 A	IP67 - Dust Tight Waterproof	Wire Leads
E-Switch SV8FW3SS-601	3.1 VDC	Off-Mom	Panel Mount Front	SPST-NO	25.2 mm	Button Flush Round	Power Symbol	Silver	Anti-Vandal Illuminated	200000 Cycles	LED White	-20 C	70 °C	36 VDC	2 A	IP67 - Dust Tight Waterproof	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
