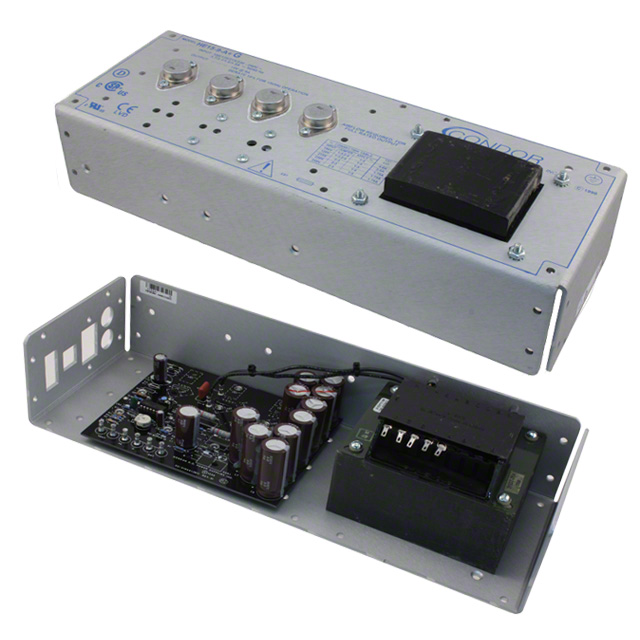

HE15-9-A+G
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 15V 135W
Deep-Dive with AI
Search across all available documentation for this part.
HE15-9-A+G
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 15V 135W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HE15-9-A+G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 9 A |
| Efficiency | 55 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 135 W |
| Size / Dimension [x] | 335.6 mm |
| Size / Dimension [x] | 14 in |
| Size / Dimension [y] | 4.88 in |
| Size / Dimension [y] | 124 mm |
| Size / Dimension [z] | 69.8 mm |
| Size / Dimension [z] | 2.75 in |
| Type | Linear |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 235.36 | |
| 5 | $ 226.95 | |||
| 24 | $ 223.59 | |||
Description
General part information
HE15-9 Series
Linear AC DC Converters 1 Output 15V 100 ~ 240 VAC Input
