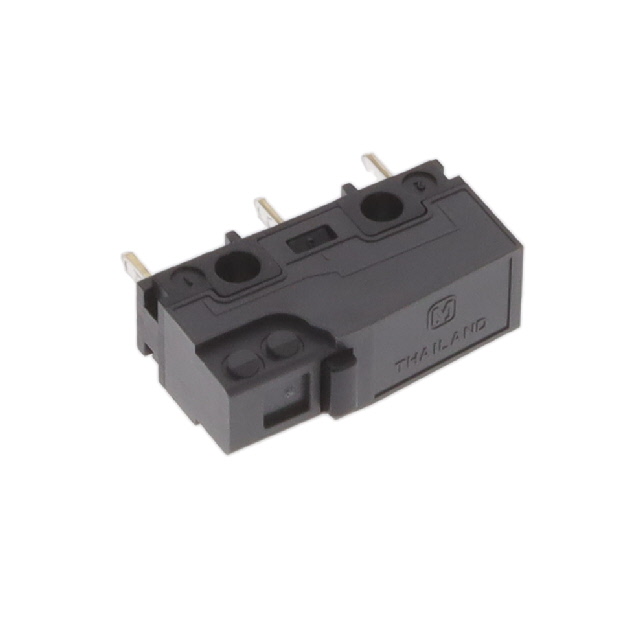

AVL34053
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AVL34053
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVL34053 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 150 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.4 mm |
| Overtravel | 0.015 " |
| Pretravel | 0.024 in |
| Pretravel | 0.6 mm |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.24 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.12 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.03 | |||
| 300 | $ 0.82 | |||
Description
General part information
AVL340 Series
Switch SPDT Through Hole
