2-794542-4

Obsolete

TE Connectivity AMP Connectors

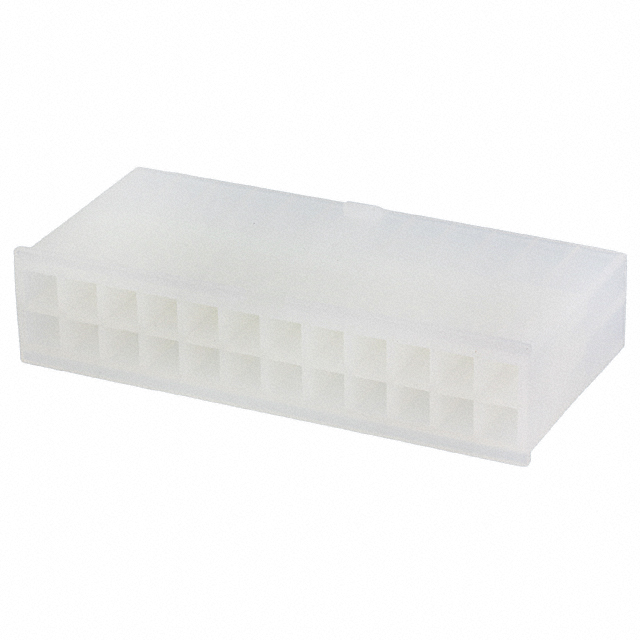

CONN PLUG HSG 24POS 4.20MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN PLUG HSG 24POS 4.20MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN PLUG HSG 24POS 4.20MM

Part	Mounting Type	Row Spacing	Row Spacing	Contact Termination	Color	Note	Contact Type	Number of Rows	Fastening Type	Number of Positions	Pitch [x]	Pitch [x]	Connector Type
TE Connectivity AMP Connectors 2-794542-4	Free Hanging (In-Line)	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	Male Pin	2	Locking Ramp	24	4.2 mm	0.165 in	Plug
TE Connectivity AMP Connectors 794542-4	Free Hanging (In-Line)	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	Male Pin	2	Locking Ramp	4	4.2 mm	0.165 in	Plug
TE Connectivity AMP Connectors 794542-2	Free Hanging (In-Line)	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	Male Pin	2	Locking Ramp	2			Plug
TE Connectivity AMP Connectors 1-794542-2	Free Hanging (In-Line)	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	Male Pin	2	Locking Ramp	12	4.2 mm	0.165 in	Plug
TE Connectivity AMP Connectors 2-794542-0	Free Hanging (In-Line)	4.2 mm	0.165 in	Crimp	Natural	Contacts Not Included	Male Pin	2	Locking Ramp	20	4.2 mm	0.165 in	Plug
