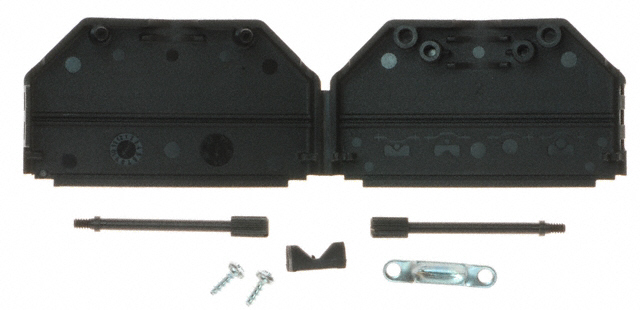

972-037-01SR011

Active

MH Connectors

D SUB BACKSHELL, ARMOR 972 SERIES, DC, 180°, NYLON 6.6 (POLYAMIDE 6.6) BODY

Search across all available documentation for this part.

Active

MH Connectors

D SUB BACKSHELL, ARMOR 972 SERIES, DC, 180°, NYLON 6.6 (POLYAMIDE 6.6) BODY

Technical Specifications

Parameters and characteristics for this part

Specification	972-037-01SR011

Accessory Type	Hinged Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	37pos, HD62pos
Compatible Shell Size	C
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Polyamide (PA66), Nylon 6/6
Number of Positions	37
Primary Material	Plastic
Shielding	Unshielded

Part	Number of Positions	Features	Cable Exit	Compatible D-Sub Size	Material	Accessory Type	Shielding	Primary Material	Color	Cable Type	Compatible Shell Size	Hardware
MH Connectors 972-037-01SR031	37	Mating Screws 4-40	180 °	37pos HD62pos	Polyamide (PA66) Nylon 6/6	Hinged Backshell	Unshielded	Plastic	Gray	Round	C	Assembly Hardware Strain Relief
MH Connectors 972-037-01SR061	37	Mating Screws 4-40	180 °	37pos HD62pos	Polyamide (PA66) Nylon 6/6	Hinged Backshell	Unshielded	Plastic	Red	Round	C	Assembly Hardware Strain Relief
MH Connectors 972-037-01SR011	37	Mating Screws 4-40	180 °	37pos HD62pos	Polyamide (PA66) Nylon 6/6	Hinged Backshell	Unshielded	Plastic	Black	Round	C	Assembly Hardware Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position Hinged Backshell Connector Black 180° Unshielded
