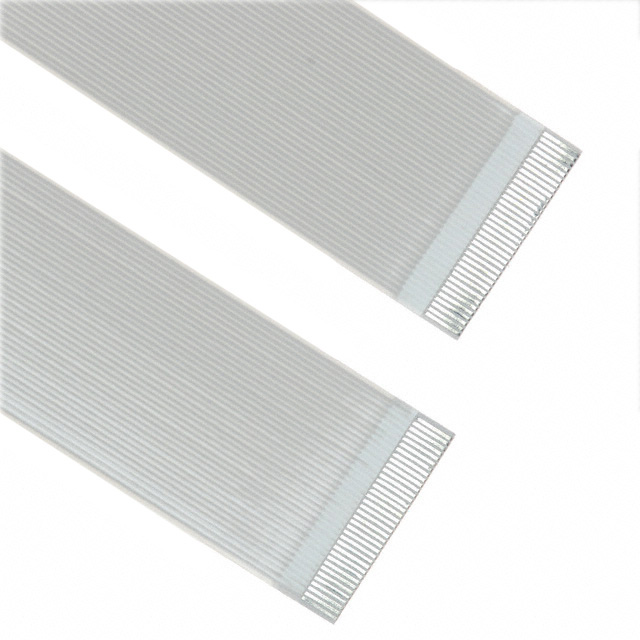

050R36-51B

Active

Parlex USA LLC

CABLE FFC/FPC 36POS 0.5MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 36POS 0.5MM 2"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	050R36-51B	050R36 Series

Cable Type	FPC, FFC	FPC, FFC
Length	50.8 mm	50.8 - 127 mm
Length	2 in	2 - 5 in
Length	-	5.984 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	36	36
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 36POS 0.5MM 5"

Part	Number of Conductors	Pitch [x]	Pitch [x]	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Termination Style	Length [x]	Length [x]
Parlex USA LLC 050R36-127B	36	0.5 mm	0.02 in	5 in	127 mm	0.14 in	3.56 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 050R36-51B	36	0.5 mm	0.02 in	2 in	50.8 mm	0.14 in	3.56 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 050R36-102B	36	0.5 mm	0.02 in	4 in	101.6 mm	0.14 in	3.56 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 050R36-76B	36	0.5 mm	0.02 in	3 in	76.2 mm	0.14 in	3.56 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 050R36-152B	36	0.5 mm	0.02 in			0.14 in	3.56 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides	5.984 in	152 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position FFC, FPC Cable 0.020" (0.50mm) 2.000" (50.80mm)
