8621 0601000

Active

Belden Inc.

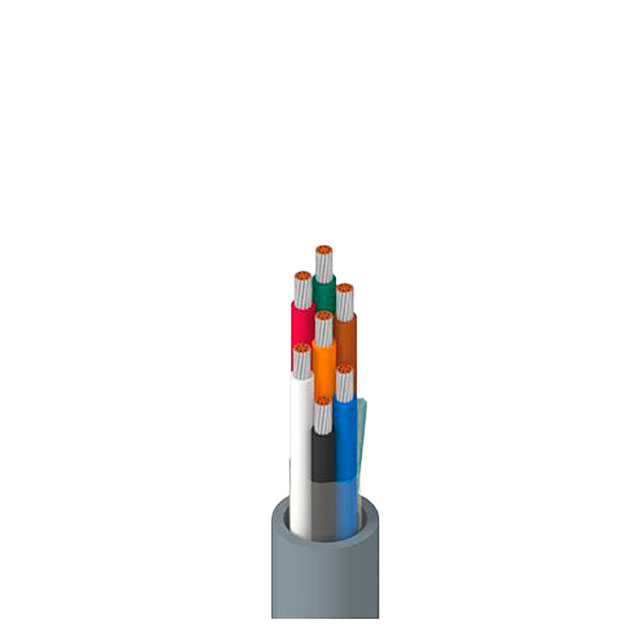

CABLE 7COND 16AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7COND 16AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8621 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	11.63 mm
Jacket (Insulation) Diameter [diameter]	0.458 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	600 V
Wire Gauge	16 AWG

Part	Jacket Color	Wire Gauge	Usage	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Length	Length	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 8621 0601000	Chrome	16 AWG	Audio Control Instrumentation	Copper Tinned	1.143 mm	0.045 in	-20 C	80 C	7	1000 ft	304.8 m	Multi-Conductor	19 Strands	29 AWG	600 V	11.63 mm	0.458 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Belden Inc. 8621 060100	Chrome	16 AWG	Audio Control Instrumentation	Copper Tinned	1.143 mm	0.045 in	-20 C	80 C	7			Multi-Conductor	19 Strands	29 AWG	600 V	11.63 mm	0.458 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.00

General part information

7 Conductor Multi-Conductor Cable Chrome 16 AWG 1000.0' (304.8m)
