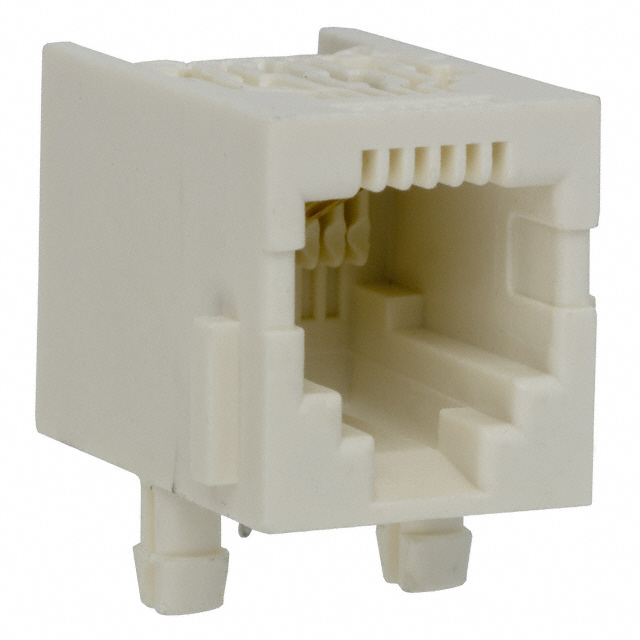

RJ11-2L-B

Obsolete

TE Connectivity Corcom Filters

CONN MOD JACK 6P2C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJ11-2L-B

Obsolete

TE Connectivity Corcom Filters

CONN MOD JACK 6P2C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RJ11 Series

Jack Modular Connector 6p2c (RJ11) 90° Angle (Right) Unshielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RJ11-2L-B	RJ11 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Panel Stops, Board Lock, Filter	Board Lock, Filter, Panel Stops, Board Guide
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	6, 2	2 - 6
Number of Positions/Contacts	-	6p4c, 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1	1
Orientation	90 °	90 °
Shielding	Unshielded	Shielded, EMI Finger, Shielded, Unshielded
Tab Direction	Down	Down
Termination	Solder	Solder

RJ11 Series

CONN MOD JACK 6P4C R/A SHIELDED

Part	LED Color	Features	Number of Positions/Contacts	Number of Ports	Termination	Tab Direction	Mounting Type	Number of Rows	Contact Finish	Contact Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Orientation	Number of Positions/Contacts
TE Connectivity Corcom Filters RJ11-4LC1-B	Does Not Contain LED	Board Lock, Filter	6p4c	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Shielded, EMI Finger	90 °
TE Connectivity Corcom Filters RJ11-6LC1-S	Does Not Contain LED	Board Lock, Filter	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Shielded, EMI Finger	90 °
TE Connectivity Corcom Filters RJ11-6L1-S	Does Not Contain LED	Board Lock, Filter	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Shielded, EMI Finger	90 °
TE Connectivity Corcom Filters RJ11-6LCT1-S	Does Not Contain LED	Board Lock, Filter	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Shielded, EMI Finger	90 °
TE Connectivity Corcom Filters RJ11-6LC2-S	Does Not Contain LED	Board Lock, Filter, Panel Stops	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Shielded	90 °
TE Connectivity Corcom Filters RJ11-6LC2-B	Does Not Contain LED	Board Lock, Filter, Panel Stops	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Shielded	90 °
TE Connectivity Corcom Filters RJ11-6X	Does Not Contain LED	Board Guide, Panel Stops	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Unshielded	90 °
TE Connectivity Corcom Filters RJ11-2L-B	Does Not Contain LED	Board Lock, Filter, Panel Stops		1	Solder	Down	Through Hole	1	Gold	Phosphor Bronze	Jack	50 µin	1.27 µm	Unshielded	90 °	2, 6
