ACA-20PC-2-DC1-RL-C
ActiveMurata Power Solutions Inc.
DIGITAL, LED-DISPLAY AC AMMETERS WITH BUILT-IN CURRENT TRANSFORMERS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACA-20PC-2-DC1-RL-C
ActiveMurata Power Solutions Inc.
DIGITAL, LED-DISPLAY AC AMMETERS WITH BUILT-IN CURRENT TRANSFORMERS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACA-20PC-2-DC1-RL-C | ACA-20PC Series |
|---|---|---|
| Display Characters - Height | - | 9.4 mm |
| Display Characters - Height | - | 0.37 in |
| Display Type | - | LED - Red Characters, LED - Green Characters |
| Features | - | Built In Current Transformer (Primary) |
| Measuring Range | - | 0 A |
| Measuring Range | - | 1.999 - 100 A |
| Measuring Type | - | Current |
| Mounting Type | - | Panel Mount - Bezel |
| null | - | |
| Number of Characters Per Row | - | 3.5 |
| Operating Temperature | - | 60 °C |
| Operating Temperature | - | 0 °C |
| Panel Cutout Dimensions | - | 33.93 mm |
| Panel Cutout Dimensions | - | 21.29 mm |
| Termination Style | - | Screw Terminal |
| Type | - | Ammeter |
| Voltage - Supply | - | 4.75 - 85 VAC |
| Voltage - Supply | - | 40 - 264 VAC |
| Weight | - | 0.068 - 0.095 lb |
| Weight | - | 30.84 - 43.09 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
ACA-20PC Series

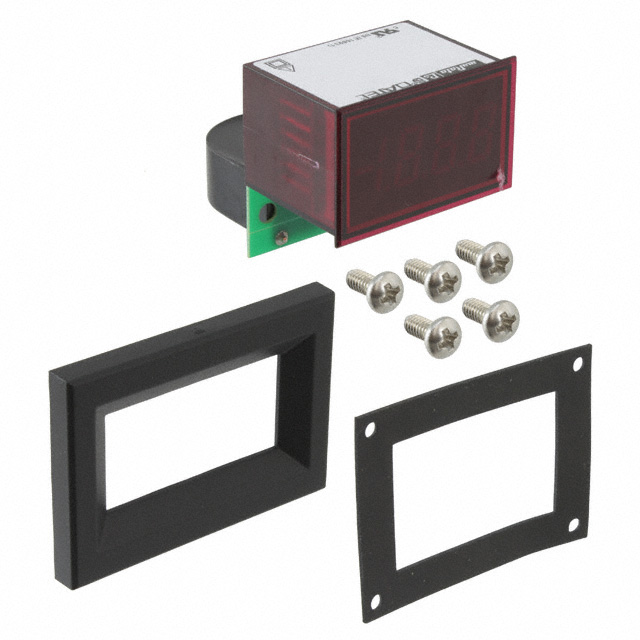

AMMETER 0-19.99A LED PANEL MOUNT
| Part | Display Characters - Height | Display Characters - Height | Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Number of Characters Per Row | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Measuring Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Measuring Range [Min] | Measuring Range [Max] | Display Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. ACA-20PC-2-AC1-RL-C | |||||||||||||||||||
Murata Power Solutions Inc. ACA-20PC-2-DC1-RL-C | |||||||||||||||||||
Murata Power Solutions Inc. ACA-20PC-1-AC1-RL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.068 lb | 30.84 g | 60 °C | 0 °C | Screw Terminal | Current | 85 VAC | 264 VAC | 0 A | 1.999 A | LED - Red Characters | Panel Mount - Bezel |
Murata Power Solutions Inc. ACA-20PC-3-DC1-RL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.082 lb | 37.19 g | 60 °C | 0 °C | Screw Terminal | Current | 4.75 V | 40 VDC | 0 A | 50 A | LED - Red Characters | Panel Mount - Bezel |
Murata Power Solutions Inc. ACA-20PC-2-AC1-BL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.068 lb | 30.84 g | 60 °C | 0 °C | Screw Terminal | Current | 85 VAC | 264 VAC | 0 | 19.99 A | Panel Mount - Bezel | |
Murata Power Solutions Inc. ACA-20PC-2-AC1-PGL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.068 lb | 30.84 g | 60 °C | 0 °C | Screw Terminal | Current | 85 VAC | 264 VAC | 0 | 19.99 A | LED - Green Characters | Panel Mount - Bezel |
Murata Power Solutions Inc. ACA-20PC-4-DC1-RL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.095 lb | 43.09 g | 60 °C | 0 °C | Screw Terminal | Current | 4.75 V | 40 VDC | 0 A | 100 A | LED - Red Characters | Panel Mount - Bezel |
Murata Power Solutions Inc. ACA-20PC-2-AC1-RL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.068 lb | 30.84 g | 60 °C | 0 °C | Screw Terminal | Current | 85 VAC | 264 VAC | 0 | 19.99 A | LED - Red Characters | Panel Mount - Bezel |
Murata Power Solutions Inc. ACA-20PC-2-DC1-RL-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.068 lb | 30.84 g | 60 °C | 0 °C | Screw Terminal | Current | 4.75 V | 40 VDC | 0 | 19.99 A | LED - Red Characters | Panel Mount - Bezel |
Murata Power Solutions Inc. ACA-20PC-4-AC1-RL-L-C | 9.4 mm | 0.37 in | Ammeter | 33.93 mm | 21.29 mm | Built In Current Transformer (Primary) | 3.5 | 0.095 lb | 43.09 g | 60 °C | 0 °C | Screw Terminal | Current | 85 VAC | 264 VAC | 0 A | 100 A | LED - Red Characters | Panel Mount - Bezel |
Description
General part information
ACA-20PC Series
Ammeter LED - Red Characters Display Panel Mount - Bezel
