216-201

Active

WAGO Corporation

WIRE FERRULE, ELECTRO-TIN PLATED, GASTIGHT CRIMPED, SINGLE WIRE, 20 AWG, 0.5 MM², 8 MM, WHITE

Search across all available documentation for this part.

Active

WAGO Corporation

WIRE FERRULE, ELECTRO-TIN PLATED, GASTIGHT CRIMPED, SINGLE WIRE, 20 AWG, 0.5 MM², 8 MM, WHITE

Technical Specifications

Parameters and characteristics for this part

Part	Size	Size	Type	Color	Insulation	Style	Length - Overall [x]	Length - Pin [x]
WAGO Corporation 216-267	12 AWG	4 mm²	Single Wire	Gray	Insulated	DIN	20 mm
WAGO Corporation 216-203	1 mm² 18 AWG		Single Wire	Red	Insulated	DIN	14 mm	8 mm
WAGO Corporation 216-201	0.5 mm² 20 AWG		Single Wire	White	Insulated	DIN	14 mm	8 mm
WAGO Corporation 216-206	14 AWG	2.5 mm˛	Single Wire	Blue	Insulated	DIN	15 mm	8 mm
WAGO Corporation 216-301	0.25 mm² 24 AWG		Single Wire	Yellow	Insulated	DIN	12 mm	8 mm
WAGO Corporation 216-241	0.5 mm² 20 AWG		Single Wire	White	Insulated	DIN	16 mm	10 mm
WAGO Corporation 216-222	18 AWG	0.75 mm²	Single Wire	Gray	Insulated	DIN	12 mm	6 mm
WAGO Corporation 216-321	0.25 mm² 24 AWG		Single Wire	Yellow	Insulated	DIN	10 mm	6 mm
WAGO Corporation 216-244	16 AWG	1.5 mm˛	Single Wire	Black	Insulated	DIN	16 mm	10 mm
WAGO Corporation 216-208	10 AWG	6 mm˛	Single Wire	Yellow	Insulated	DIN	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

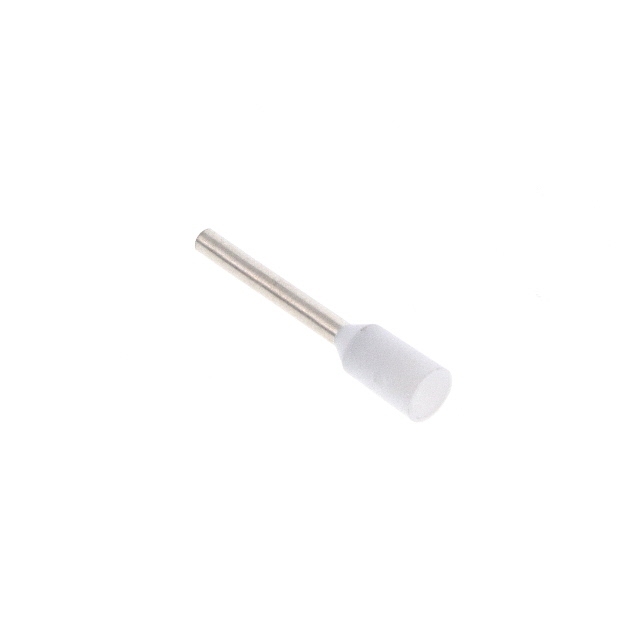

The 216-201 is a white ferrule crimp terminal for 20AWG wire, made of copper.
