3620-1-32-15-00-00-08-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .040DIA GOLD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .040DIA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3620-1-32-15-00-00-08-0

Board Thickness	0.031 in
Board Thickness	0.79 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Brass Alloy
Insulation	Non-Insulated
Length - Above Flange [x]	0.2 in
Length - Above Flange [x]	5.08 mm
Length - Overall [x]	0.356 in
Length - Overall [x]	9.04 mm
Mounting Type	Board Edge
Pin Size - Above Flange [diameter]	1.02 mm
Pin Size - Above Flange [diameter]	0.04 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Rivet

Part	Terminal Style	Termination	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Above Flange [x]	Length - Above Flange [x]	Contact Finish Thickness	Contact Finish Thickness	Terminal Type	Insulation	Length - Overall [x]	Length - Overall [x]	Contact Material	Board Thickness	Board Thickness	Mounting Type	Contact Finish
Mill-Max Manufacturing Corp. 3620-1-32-21-00-00-08-0	Single End	Rivet	1.02 mm	0.04 in	0.2 in	5.08 mm	0.51 µm	20 µin	PC Pin	Non-Insulated	0.356 in	9.04 mm	Brass Alloy	0.031 in	0.79 mm	Board Edge	Gold
Mill-Max Manufacturing Corp. 3620-1-32-15-00-00-08-0	Single End	Rivet	1.02 mm	0.04 in	0.2 in	5.08 mm	0.25 Ám	10 Áin	PC Pin	Non-Insulated	0.356 in	9.04 mm	Brass Alloy	0.031 in	0.79 mm	Board Edge	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

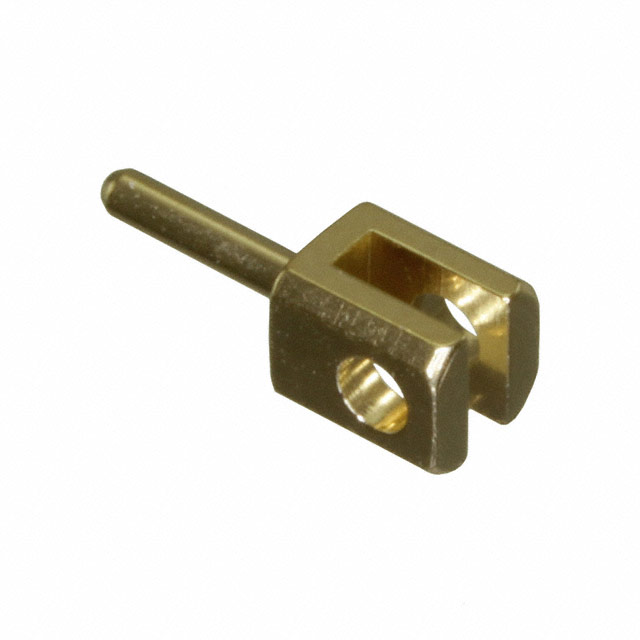

PC Pin Terminal Connector Board Edge Gold 0.040" (1.02mm) Dia
