1241.1032.4
ActiveSCHURTER Inc.

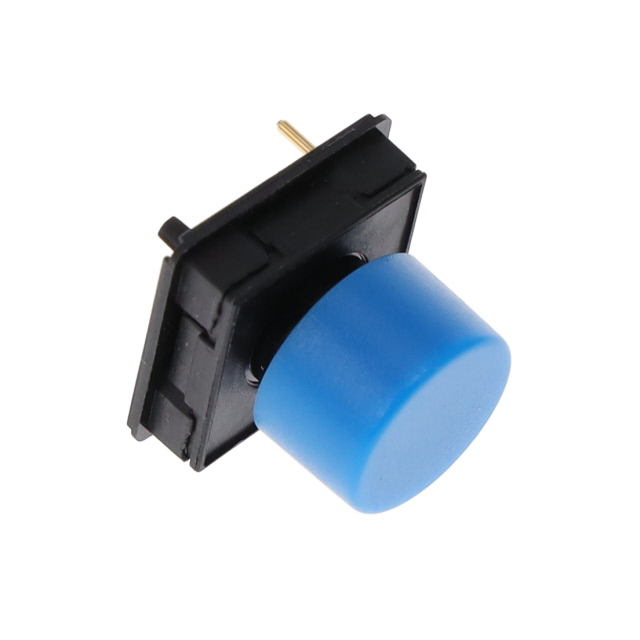

SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.1032.4
ActiveSCHURTER Inc.
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.1032.4 | 1241.1032 Series |
|---|---|---|
| Actuator Height off PCB, Vertical | - | 12.25 mm |
| Actuator Height off PCB, Vertical [z] | 10.75 mm | 9.25 - 13 mm |
| Actuator Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Standard | Standard |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC | 0.05 - 24 A |
| Features | Tactile Feedback | Tactile Feedback |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Through Hole | Through Hole |
| Operating Force | 0.25 kgf | 0.25 kgf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Outline [x] | 12.65 mm | 12.65 mm |
| Outline [y] | 12.65 mm | 12.65 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.45 mm | 0.45 mm |
| Termination Style | PC Pin | PC Pin |
1241.1032 Series
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Switch Travel | Mechanical Life | Operating Force | Features | Actuator Type | Ingress Protection | Termination Style | Mounting Type | Outline [y] | Outline [x] | Circuit | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Material | Switch Function | Illumination | Contact Rating @ Voltage | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.1032.4 | 0.45 mm | 1000000 Cycles | 0.25 kgf | Tactile Feedback | Standard | IP40 | PC Pin | Through Hole | 12.65 mm | 12.65 mm | SPST-NO | 10.75 mm | Top Actuated | -25 °C | 85 °C | Polycarbonate (PC) | Off-Mom | Non-Illuminated | 0.05 A, 24 VDC | |
SCHURTER Inc. 1241.1032.3 | 0.45 mm | 1000000 Cycles | 0.25 kgf | Tactile Feedback | Standard | IP40 | PC Pin | Through Hole | 12.65 mm | 12.65 mm | SPST-NO | 10 mm | Top Actuated | -25 °C | 85 °C | Polycarbonate (PC) | Off-Mom | Non-Illuminated | 0.05 A, 24 VDC | |
SCHURTER Inc. 1241.1032.6 | 0.45 mm | 1000000 Cycles | 0.25 kgf | Tactile Feedback | Standard | IP40 | PC Pin | Through Hole | 12.65 mm | 12.65 mm | SPST-NO | Top Actuated | -25 °C | 85 °C | Polycarbonate (PC) | Off-Mom | Non-Illuminated | 0.05 A, 24 VDC | 12.25 mm | |
SCHURTER Inc. 1241.1032.2 | 0.45 mm | 1000000 Cycles | 0.25 kgf | Tactile Feedback | Standard | IP40 | PC Pin | Through Hole | 12.65 mm | 12.65 mm | SPST-NO | 9.25 mm | Top Actuated | -25 °C | 85 °C | Polycarbonate (PC) | Off-Mom | Non-Illuminated | 0.05 A, 24 VDC | |
SCHURTER Inc. 1241.1032.7 | 0.45 mm | 1000000 Cycles | 0.25 kgf | Tactile Feedback | Standard | IP40 | PC Pin | Through Hole | 12.65 mm | 12.65 mm | SPST-NO | 13 mm | Top Actuated | -25 °C | 85 °C | Polycarbonate (PC) | Off-Mom | Non-Illuminated | 0.05 A, 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.42 | |
| 50 | $ 3.29 | |||
| 100 | $ 2.59 | |||
| 500 | $ 2.55 | |||
Description
General part information
1241.1032 Series
Tactile Switch SPST-NO Top Actuated Through Hole
