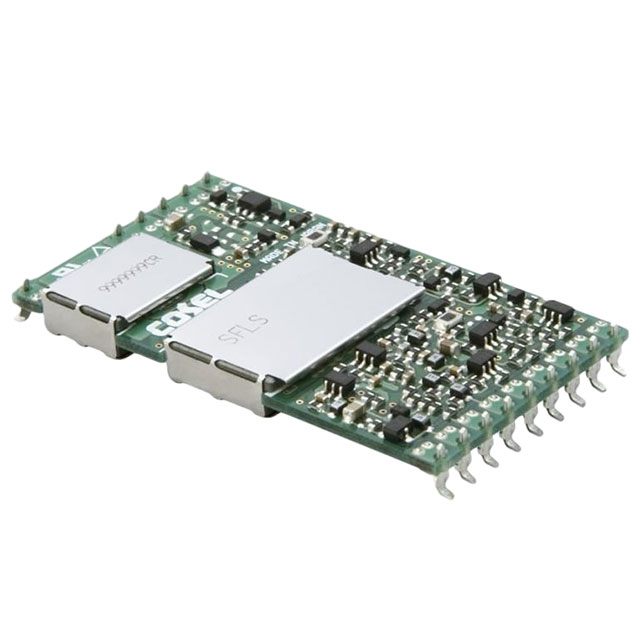

SFLS154812B
ObsoleteCosel USA, Inc.
DC DC CONVERTER 12V 15W
SFLS154812B
ObsoleteCosel USA, Inc.
DC DC CONVERTER 12V 15W
Description
General part information
SFLS154812 Series
Isolated Module DC DC Converter 1 Output 12V 1.25A 36V - 76V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SFLS154812B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1.25 A |
| Efficiency | 89 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 15 Leads |
| Package Name | 18-SMD Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.17 in |
| Size / Dimension Length | 1.52 in |
| Size / Dimension Width | 0.88 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 76 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
